Employe Timetables
Employe Timetable #5, effective September 29, 1946 (scans and link courtesy Derrick Brashear)

Track Charts


Other Documents

 Interactive Timetable  - station list taken from Employe Timetable #5, September 29, 1946
                                               -  information collected from ETT's #28,#5, #6, #7
M A I N   L I N E
Interlockings Interlocking
Station		 Block
Station		 Block-Limit
Station		 STATIONS Distance from MONON Sidings,
assigned direction
Car capacity
45 ft. cars
N S Both
- - - - PITTSBURGH (Pittsburgh Division) - - - -
X X X - MONON (Pan Handle Division) - - - -
- - - - DIVISION POST (Pan Handle Division) 0.2 - - -
- - - - THIRTIETH ST. 2.0 - - -
X X X - OB 2.7 - - -
- - - - HAYS 4.8 - - -
- - - - MESTA 5.5 - - -
- - - - HOMESTEAD 6.4 - - -
- - - - MUNHALL 7.2 - - -
X - - - KENNY 9.3 - - -
X X X - PG 10.1 - - -
- - - - DUQUESNE 10.8 - - -
- - - - SOUTH DUQUESNE 11.6 - - -
X X X - CR 13.7 - - -
- - - - DRAVOSBURG 14.4 - - -
- - - - PETERS CREEK JUNCTION 17.4 - - -
- - - - WILSON 17.7 - - -
- - - - CLAIRTON 19.0 - - -
- - - - WEST ELIZABETH 20.6 - - -
- - - - FLOREFFE 22.1 - - -
- - - - ELRAMA 22.8 - - -
- - - - SHIRE OAKS 23.7 - - -
X X X - H 25.0 - - -
- - - - COURTNEY 27.0 - - -
- - - - MONONGAHELA 29.8 - - -
X X X - MC 29.9 - - -
- - - - DONORA 34.2 - - -
- - - - WEST COLUMBIA 35.0 - - -
- - - - WEST MONESSEN 38.4 - 73 -
- - - - CHARLEROI 39.6 - - -
- - - - BELLE VERNON 40.9 - - -
- -
 - - DUNLEVY SIDING
 42.5 131 - -
- - - - ALLENPORT 43.5 - - -
- - - - STOCKDALE 44.7 - - -
- - - - ROSCOE 45.6 - - -
- - - - COAL CENTRE 48.3 - - -
- - - - CALIFORNIA 48.9 - - -
- - - - WEST BROWNSVILLE JUNCTION 51.8 - - -
- - - - WEST BROWNSVILLE 53.0 - - -
- - - - VESTA SIDING 55.0 - - 70
- - - - MILLSBORO SIDING 61.0 - - 61
- - - - TEN MILE RUN JUNCTION 61.9 - - -
NOTE - 'X' Indicates in service
NOTE - The distance from Pittsburgh to MONON is 1.0 mile

Interlockings - Remote controlled, operated from:
Interlocking Operated from
KENNY PG
Employes in Charge of Sidings of Assigned Direction as Follows:
Siding Employe in Charge Note
West Monessen - Southward Signalman MC -
Dunlevy - Northward Signalman MC -


OB
     (OrmsBy)  Named for an adjacent South Side neighborhood, this intelocking controlled the junction of the Scully Branch with the Monongahela Division mainline, at the south throat of 30th St. Yard.  These two routes passed over each other as they became the 4-track portion of the Monongahela Division main down to 'CR', creating a complicated track arrangement of multiple double slip switches.  'OB' also controlled the '0' track from its north end in front of the block and interlocking station to its south end at Hays, PA.  The operator here must have been a busy person...
     The  block and interlocking station structure was originally wood;  it remained so throughout the 1940's, though it had gotten quite delapidated and had to be propped up to prevent it sliding down the embankment onto East Carson St.  The extant brick-and-block structure dates from 1952, at the completion of the 30th St, Yard reconstruction.

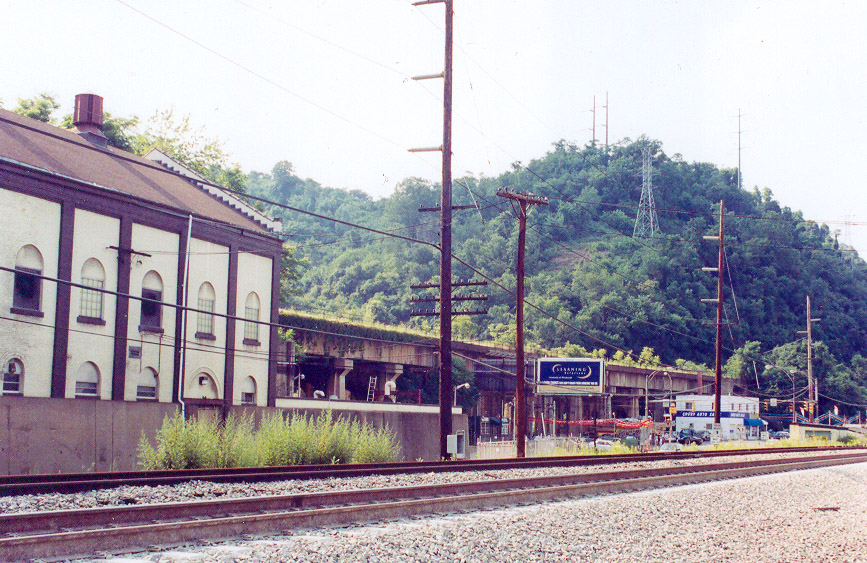

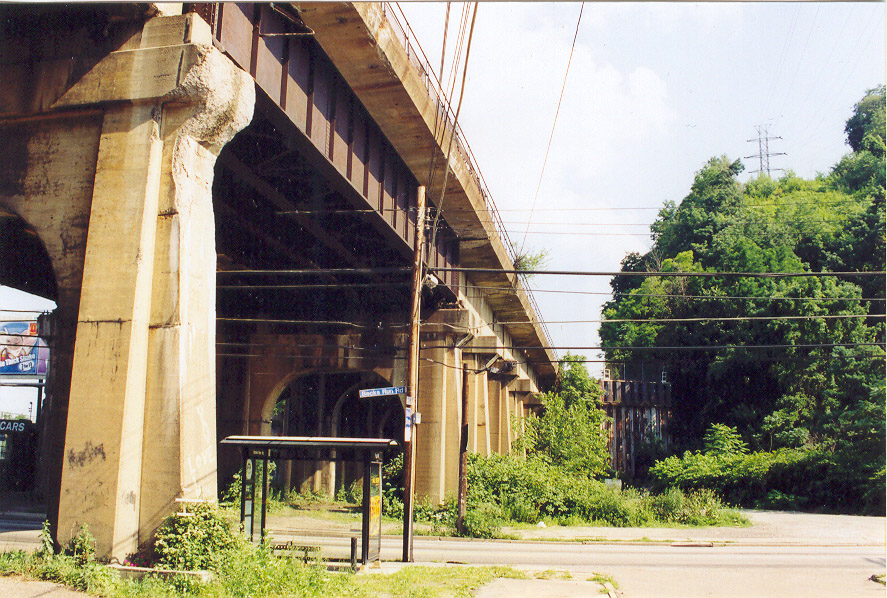

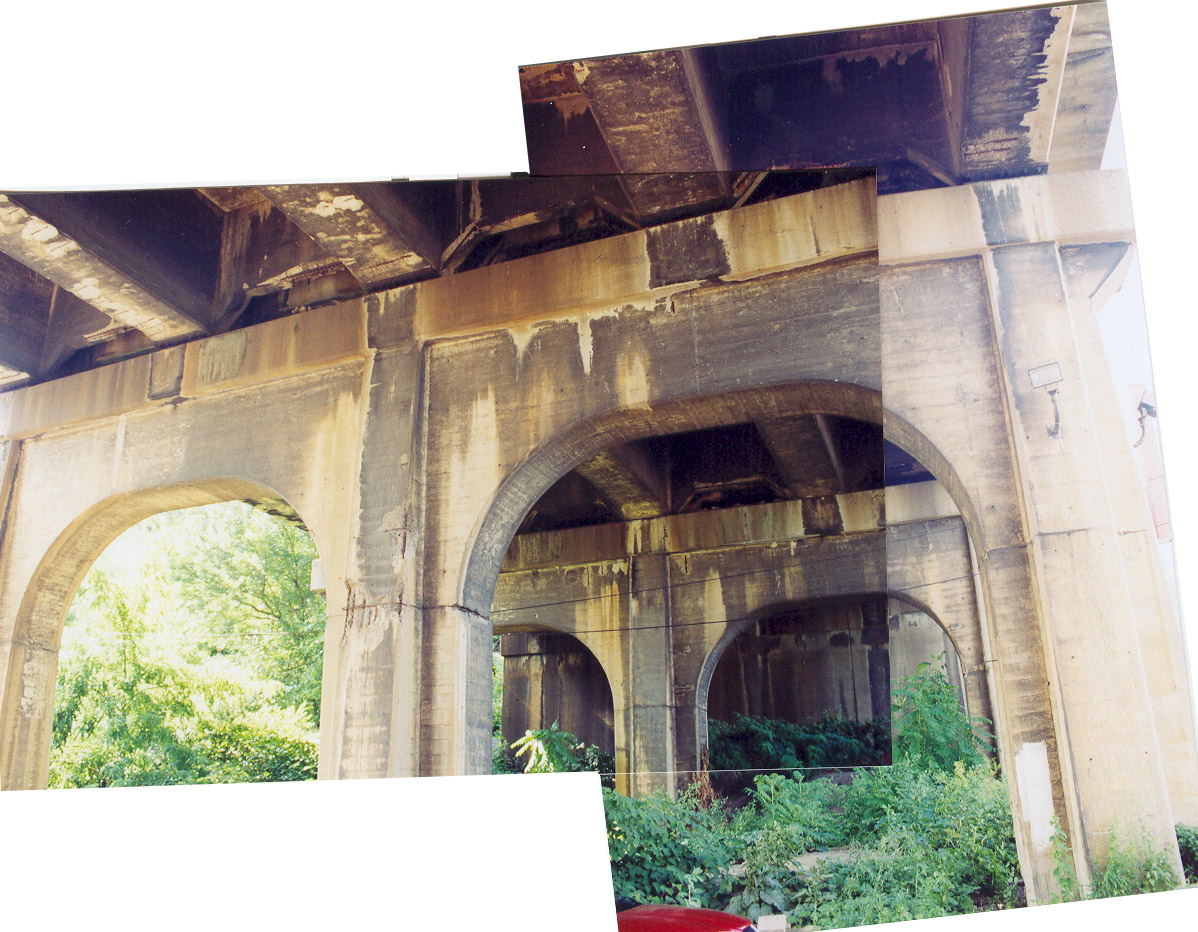

     South of ;OB', the mainline curved slightly to the east as it passed over the Beck's Run Viaduct over Beck's Run and Beck's Run Rd.  This five-track (!) concrete structure dates from about 1925 and replaced a pair of steel double-track viaducts.
brv_rr_north
brv_rr_south

brv_under
PG
     (Port perry bridGe - ?; PittsburGh - ?)  This intelocking controlled the western end of the Port Perry Branch where it connected to the Monongahela Division Main Line.


PORT PERRY BRANCH
Interlocking Interlocking Station Block Station Block-Limit Station STATIONS Distance from Port Perry Branch Jct. Sidings Assigned direction
Car Capacity 50 ft. Cars
West East Both
- - - - DIVISION POST (Pittsburgh Division) 1.3 - - -
X X X - PG 2.1 - - -
NOTE - X indicates in service
The driection from 'PG' to Division Post (Pittsburgh Division) is Eastward


back to timetable
More to come!
