Sierra Sound Installation in the LGB Powered Tender

[ Home ] [ Up ] [ Previous Page ] [ Next Page ]

Contents


Overview

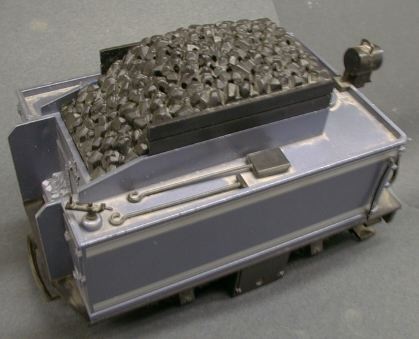

lgb powered tenderLGB has made powered tenders for many years. This is an old (and dusty) one that matches the Lake George and Boulder passenger starter set. Newer ones often come with sound installed, this one has nothing inside but a lead weight.

Powered tenders are popular as they can convert a fairly weak pulling 0-4-0 starter set locomotive into a very good puller at relatively low cost. The set also handles tight radius curves well. When the cross jumper cables are used, power pickup of the set is materially improved as well.


[ Top ]


Sound Installation

The primary reason for existence of this page is to describe a Soundtraxx Sierra digital sound installation in the tender. The tender is the obvious place for the sound system to be installed as it has adequate room inside. The locomotives typically do not have enough room.

The speaker is usually the hardest part to install in any sound system installation, and this loco was no different. Since the power brick occupies the whole underside of the tender, the usual method of mounting the speaker on the floor facing down will not work. Instead, it is mounted under the coal load facing up.

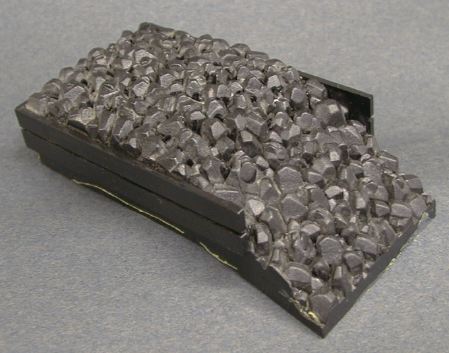

drilled coal loadThe coal load is a separate molded piece that fits onto the top of the tender shell. It is glued in place with a fairly weak adhesive so that it is possible to carefully pry it off causing the adhesive to let go.

Underneath the coal load, the tender shell is solid. The area under the coal load must be drilled or removed as there is not enough room between the coal load and the tender shell to mount a good speaker. Both the coal load and the shell form obstacles that must be removed or relieved. The coal load itself is fairly easy to drill in an unobtrusive fashion. I used a 7/64" drill bit to drill about 50 holes at the low spots between coal chunks. Due to the sharp relief of the coal load, these holes are not very visible. They could be disguised further if desired by attaching small pieces of real coal near each hole.

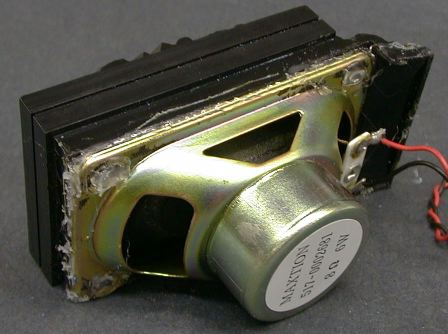

speaker to coal loadThe speaker that I selected is a 2" by 3.5" rectangular version. This particular speaker is a computer replacement part and is very common. I found these 8 ohm 6 watt speakers at a computer swap meet for $1 each. A version of this speaker is the one used by Aristo in the RS-3. If you can't find a loose one around, you can buy one as a replacement part from Aristo. This speaker barely fit under the coal load. It is actually attached to the coal load and sealed with hot glue. This whole assembly is then inserted into the tender shell from the top. The advantage of using the speaker attached to the coal load is that the load and speaker can be removed to access the controls on the Sierra itself.

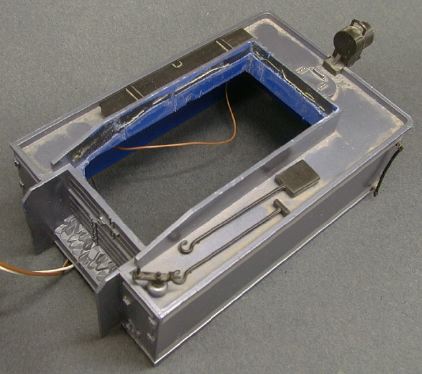

lgb shell trimmed to fit speakerUse of this speaker required that the whole top of the tender shell under the coal load be removed to allow it to fit. The entire flat surface under the coal load was cut out with a jig saw and ground flush. A 3" round speaker would also fit underneath the top of the tender shell. In that case, the position of the speaker should be marked and an array of 1/4" holes should be drilled in the top of the tender shell underneath the coal load.

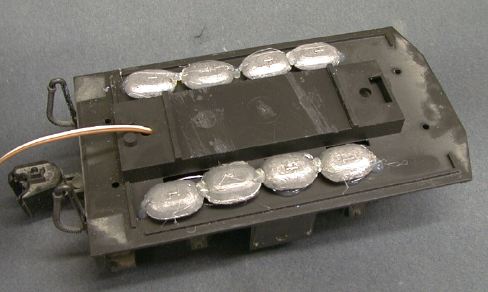

trimmed tender floorThe speaker hung deeply enough into the tender such that it interfered with the lead weight in the center of the tender. The weight was removed and the screw bosses used to attach it were sliced off to make room. The weight was replaced with lead fishing weights attached to the tender floor along the edges of the tender. The new weights, the Sierra's battery and the speaker make up for the loss of the original weight.

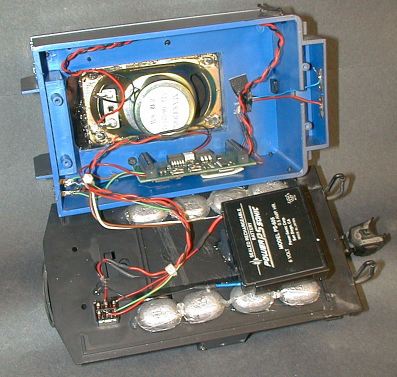

sierra installed in tenderThe Sierra's battery (a slimline version in this case) is mounted to the tender frame with foam tape and hot glue. Since the speaker hangs to the front, the battery has to go to the rear. It won't fit any other way. The power switch is mounted to the tender floor so that it can be accessed from below. I didn't use a external volume control switch as the coal load/speaker assembly can be lifted out to access the buttons on the Sierra for changing the volume or programming. If your speaker arrangement can't be removed, then another switch for volume control and programming should be mounted in the same position on the other side.

Since all the tender wheels are powered and have power contacts, there is no room on them for chuff synchronization magnets. In this case, it is easier to use the automatic chuff on the Sierra. I didn't use track mounted magnets for whistle and bell control, I let the Sierra handle that with its voltage controlled methods. However, it would not be difficult to find places on the bottom of the tender to mount the reed switches for use with track magnets.

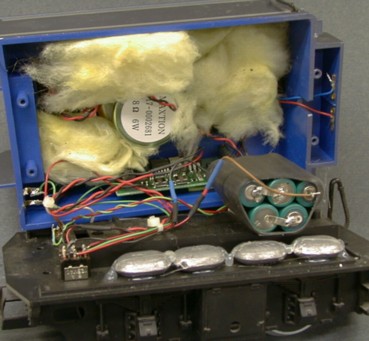

lgb tender with NiMH batteryThe Sierra's own battery eventually crapped out from being left in a discharged state too often or too long so it was replaced with 5 tabbed NiMH AA cells. No other modifications were made to the installation to accommodate the replacement battery pack.
