#100
MARS LIGHT INFORMATION
I have a portable Mars model SBRE-100, serial #839, that I believe came from the NKP
(probably in caboose service).
It is a 12" cubic aluminum housing with a single 7", 12 volt, 200 watt GE clear
locomotive bulb and a red glass lens.
The "figure 8" drive is via 2 separate linkages connected to the metal ring that holds the movable
sealed beam in place. The unit has 2 push switches cast into the housing marked "STOP" and "START".
Can you point me in a direction where I could find out more
about this model (production dates, wiring and mechanical diagrams, suggested applications,
availability of parts, known users, etc.)? Any idea of a value range?
#101
GYRALITE CLASSIFICATION
Photo shows application used by Canadian Pacific. Their RDC's all had portable white units hung on the nose door when leading a train. Do you know the model number of this type?
This is a Pyle-National 10350 unit.
#102
GYRALITE CLASSIFICATION

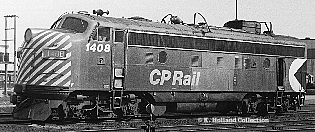

Photo shows application used by Canadian Pacific. Some of the GM cabs assigned to 'The Canadian' had dual sealed beam units (white) transversely mounted on the roof at a 45° forward angle. Do you have any information on this unit?
This is a Pyle-National Horiz. 20585 Gyralite.
#103
20585 RED LENS LOCATION IN D&H
The photos and illustrations of D&H U23B locomotives show the red lens of the 20585 Gyralite to be
located on the LEFT - as one faces the locomotive (horizontal mount in nose with hinge at top).
The D&H U33C mountings illustrate the red lens on the RIGHT.
This seems to be the convention.
Any information for the consistent LEFT mounting of the red lens on the D&H U23B's would be appreciated.
#104
20585 RED LENS LOCATION IN GE LOCOMOTIVES
Volume II of Centennial Treasury of General Electric Locomotives shows the
following relationships of the 20585 Gyralite's Red lens relative to observer facing locomotive:
- Red On Left
- SCL 1719 (U33B, 1967)
- D&H 2313 (U23B, 1968)
- Auto Train 4000 (U36B, 1971)
- Red On Right
- Santa Fe 357 (U28C, 1966)
- SCL 1762 (U36B, 1970)
- SCL 250 (U18B, 1973)
- SCL 303 (U18B, 1973)
- SCL 378 (U18B, 1974)
There does not seem to be a pattern! It also shows Santa Fe U30CG #401 1967
with Red on top!
Would you happen to know if GE installed the Red lenses? Was the installation intended to
be random?
