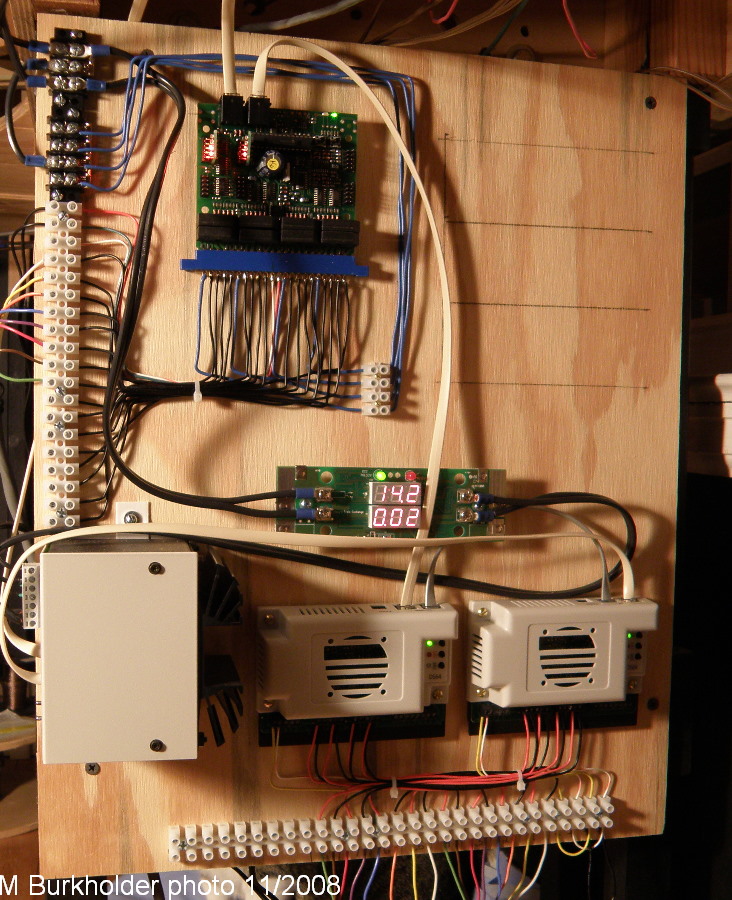

This panel has all the DCC hardware for Staging Yard. The Main Level has a similar panel.

At the top is a BDL168 that detects a train on a particular block to track. Next to it is a space to mount transponding hardware (RX4). In the middle is one of Tony's RRAmp meters. Across the bottom is a DB150 wired as a booster. Then two DS64s used to control the 8 turnouts/crossovers in Staging Yard

The panel can be removed and taken to a workbench to work on the components.
