USA Trains GP7/9 Tips

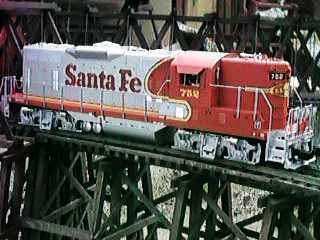

USA Trains has released is second diesel, a GP-7 or
GP9 depending on the road name desired. My first impression is that
this is a fine engine. It runs very smoothly and pulls very well.
The GP-7 and the later GP9 were developed by EMD and first released in 1949. The engine was intended to be a lower cost version of the cab type units that had come before. This was actually EMD's second attempt, after the ill-fated BL-2, at the road switcher market. The intention was to make an engine that had good engineer visibility both fore and aft and was easy to maintain. EMD thought that the resultant engine was so ugly that no self respecting railroad would allow one on the main line. They were obviously wrong. The "Geep" was used in every kind of service on railroads all over the country. Many were equipped with steam generators and were used in passenger service as well. There were also cabless "B" units of the GP9 made as well, but the vast majority were "A" units.
These units proved so versatile that instead of scrapping them at the end of their normal lives, many railroads elected to rebuild them instead. Some got chopped noses and are still in service. ATSF called theirs a GP9u (numbered in the 2650 class) and I still see them nearly every day on the LA Harbor Sub. Other railroads rebuilt them in their original configuration or cut them down into slugs.
The Warbonnet version of the USA Trains GP9 is numbered 752. There is a class of GP9 ATSF locos shown on the Santa Fe Locomotive Drawings page that is numbered from 700 to 751 that looks like this engine. I could not find another engine numbered 752. The same class is shown in the ATSF All Time Diesel Roster that has the same information. Since it unlikely that ANY GP9 was ever painted in Warbonnet, maybe USA Trains decided to number this model as the next one that would have been purchased.
Contents
- Gear Noise
- Performance
- Scale and Clearance
- Coupler Issues
- Smoke
14 Sep 02 - Sound
- Cosmetics and Details
- GP9 Wheel Upgrades
- GP9 Disassembly
14 Sep 02 - GP9 Lighting 15 Sep 02
- GP9 Interconnection Schematic 15 Sep 02
- GP9 DCC Instlallation 15 Sep 02
Gear Noise
The first thing that I noticed when I dropped the GP9 on the track is that there was a very audible gear noise. I thought that I wasn't off to a very good start, but it turns out that the gear noise is about the only thing that I found wrong or even slightly objectionable. As the engine was run in, the worst of the noise went away. When it was new, the noise was roughly equal running forward or backward. After some break-in time forward the noise was louder and harsher running backward than running forward. After extended running in both directions, the noise has settled down at the "light whine" level.
The gear train is a straight forward worm gear drive with an exceptionally large can motor in each truck.
[ Top ]
Performance
Aside from the gear noise, the engine runs VERY well and very smoothly. It starts and runs at lower track voltage than the pair of Aristo RS-3's that I tested it with. At about 10 scale mph, the GP9 and the RS-3s run at the same speed. At higher speeds the GP9 runs maybe 1% slower than the RS-3's. This close speed matching allows the Aristo diesels and the GP9 to run in MU operation without having to mess with either. At all speeds in either direction there is very little bucking between the engines.
The excellent slow speed capability of the USA Trains GP-7/9 makes operation with Kadee couplers very easy. It is no problem to smoothly start and stop the engine over an uncoupler magnet and the smooth push allows spotting of cars away from the magnet to be highly reliable.
The pulling power of the GP9 is good as well. In my standard traction test, it'll handle 14 cars nicely on a 1.6% grade, see my Tractive Effort Tests page for the data. The engine has four traction tires, two on each truck.
Power is picked up on all eight wheels through the wheel journals AND the wheel bearings in addition to four track sliders. The engine does slow somewhat on a sections of really cruddy track, but tends not to stall, jerk or sputter. When the engine was new, power pickup reliability was excellent. After a period of time, the sliders packed up with crud (I don't keep my track really clean) and power pickup suffered as a result. Further, the four wheels with traction tires don't contribute much to power pickup. The sliders themselves seem to wear faster than LGB sliders as after a hundred hours or so of running, they are deeply grooved. A quick pass with a Brite Boy will clean off the sliders.
After a year of use, the wheels without the traction tires have become very pitted and now do not make reliable connection to the track. Combine that with crudded up sliders, and the engine has become sensitive to dirty track. I wired it with power connectors so that it could pick up power from its train or another engine and it is much better. Better wheels seem to fix this problem, see GP9 Wheel Upgrades later in this page.
The trucks are flexible and as a result, the engine is very sure footed. It tends not to derail, even under really bad conditions. There are lots of dried ivy leaves and stems in my yard and the wind repositions them all the time. Even though the engine continually runs over them, it just crumbles them up and spits out what is left without leaving the track.
The engine has directional headlights that are clearly visible in daylight although they don't cast a real strong beam at night. The large number boards and the cab are also illuminated. There are marker lights that change color depending on the engine direction, green to the front, red to the rear.
The GP-7/9 has a very high motor stall current, more than 10 amps steady state by actual test. This is obvious during bench tests as well. Just applying 18 volts to the unloaded engine causes the current meter on my power supply to spike past 8 amps. Further, I assume that the real peak is higher than that, the meter just can't respond fast enough. If you add DCC or R/C to this engine, you will have to be careful to properly size the motor controller or you will probably burn up the motor controller. This is the main reason that I have not yet installed DCC in this engine. After speaking with several DCC decoder manufacturers for their recommendation for the proper DCC decoder for this engine, none of them wanted their decoders installed in the GP9. All have had too much trouble with warranty returns, even when two decoders were used. Measured right at the motor, the stall current is 15 amps per motor, beyond the capability of any currently manufactured DCC decoder. The stall current of the entire engine is less due to the parasitic resistance of the power wiring in the engine. You can find more data on these motors in my DCC Tips page.
[ Top ]
Scale and Clearances
By my measurements, the model is acceptably close to 1/29 scale. I get 1/28.8 scale in width, 1/29 scale in length and 1/29.6 scale in height based on EMD's builders drawings. The sprung trucks are a reasonable facsimile of a Blomburg Type B truck. The wheel base is the correct 9' on the money at 1/29 scale. I believe that the scale height of the engine is off due to the small wheels, they scale out to under 33" instead of the more correct 40".
Even though the engine is large, clearance issues are not terribly severe. The foot boards are high enough to clear either Aristo or LGB turnout motors, even on tight radius track. The outside overhangs generally aren't worse than a Big Hauler. Most clearances are considerably relaxed from a Bachmann Shay, so if a Shay fits, the GP9 will do fine. However, there are some clearance issues that has come up with the GP9.
The motor bricks hang pretty low, they clear the railheads by only 0.07". One user has complained that the bricks hang up on LGB rack rail and on LGB station platforms. I don't have either of these items to check against, but it could be close. A Bachmann Shay is pretty low underneath, but it has much more clearance at about 0.15". An Aristo diesel brick clears by 0.2". The GP9 clears Kadee uncoupler magnets fine.
There was another discussion on the Internet about clearance between the strap hangers on the Blomburg Type "B" trucks and LGB EPL turnout motors. One user was having serious interference problems. I took my GP9 outside and measured the clearance using styrene strips as feeler gauges. I found that the strap hangers were indeed VERY close to the tops of the motors, but they did clear in my case. Clearance was 0.01" (0.25 mm) to 0.06" (1.5 mm) depending on which strap hanger I measured against various turnout motors. This is about the same clearance that I get with the brake hangers on the Bachmann Shay. Larger aftermarket wheels will fix both of these clearance problems.
The motor, lights, sound and smoke switches are rather inconveniently located on the bottom of the engine. They are clearly labeled, but it is difficult to reach them without picking up the engine. Besides, I never can remember which one is which and I still find myself picking up the engine to read the labels.
[ Top ]
Coupler Issues

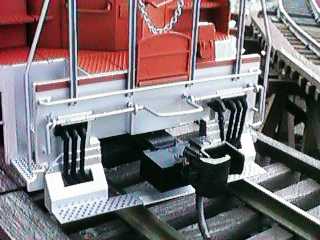

A Kadee 831 coupler mounts right on the engine
by following the included instructions for mounting the included USA
Trains knuckle coupler. The height comes out just right once a slight
modification is made to the coupler mount. The mounting screw that
comes with the hook and loop coupler is too short to use with the Kadee
coupler and the Kadee supplied screws are a little too small. I found
some suitable screws in my junk box before I realized that I could have
probably used the screws that come with the supplied USA Trains knuckle
couplers. The coupler swing is too restricted to allow the use of
knuckle couplers on 2' radius curves. Derailments are a certainty.
An LGB knuckle coupler will fit right on and comes out at the right height, however, it too is restricted to 4' or larger radius curves.
The coupler mounting tang is allowed to rotate to allow the couplers to deal with the large coupler overhang. I found that the vertical slop in this mount was just a little too much for Kadee couplers which are very sensitive to proper mounting height. The coupler would droop down just enough to allow the trip pin to catch on the track in turns and through turnouts. Filing about 20 mils off the mounting screw post allows the mounting screw to be tightened just enough to remove virtually all of this slop and still allows the tang to rotate freely.
The coupler centering spring is a little weak so that the coupler doesn't center precisely every time. This will need a little work.
I took the engine to the GIRR, Mountain Division where 2' curves are everywhere. The engine looks pretty silly on curves that tight, it is just too big. The coupler overhang is severe. I was able to couple and haul cars with hook and loop couplers, but ONLY with asymmetrical couplers (hook and loop on the engine, loop only on the following car). The engine and test car worked OK on the tight curves and even S curves, forward and backward. When I added a hook to the following car, the engine dragged it off the track on the first turn.
[ Top ]
Smoke
The GP9 has two smoke generators which work quite well. The engine comes with both plastic and metal stacks. The instructions indicate that if the smoke generators are to be used, the metal stacks must be used to handle the heat. The problem is that the metal stacks are held in only by gravity and if you turn the engine over to access the smoke switch on the bottom, the stacks will fall out and they could get lost easily. If they are used, they should be attached with adhesive.
The instructions indicate that the rear stack may smoke more than the front stack. This is actually true. The rear stack puts out more smoke than the front stack.

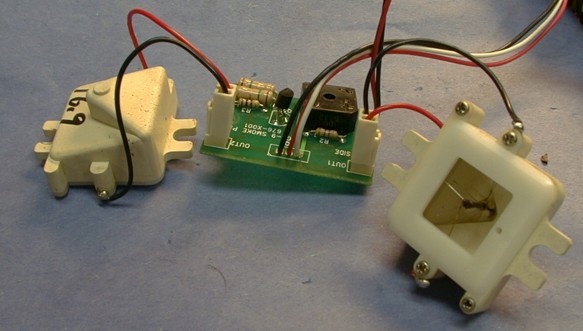

The smoke system consists of a regulator board, the
two smoke units and a remotely mounted regulator transistor. Be careful
when removing this assembly. Three of the four mounting posts broke off
while I was removing the screws. I reattached the posts with Zap-A-Gap
CA and was very careful when reinstalling the screws.

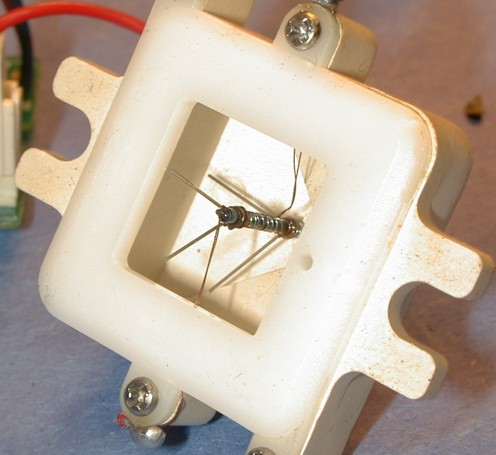

The smoke elements themselves seem to be similar to
Bachmann elements. To me, this means that they are not long for this
world. However, its been four years since I got this loco and both are
still holding together.
The smoke

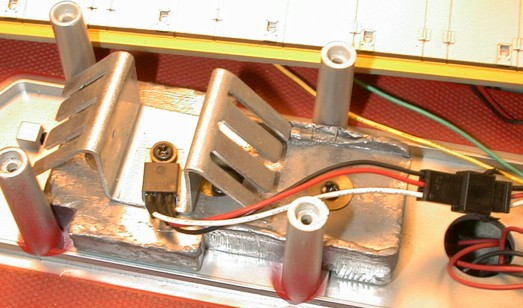

unit regulator makes quite a bit of heat so that it is mounted to the
frame with a finned heat sink. This part is a Motorola TIP122
Darlington pair integrated circuit.

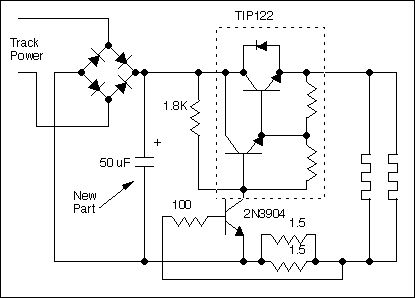

This is a schematic of the smoke circuit regulator.
This is a constant current regulator. The two 1.5 ohm resistors sense
the current in the smoke elements. If the smoke element current
increases, the base voltage of the 2N3904 increases and it in turn
drags down the base of the TIP122 pass transistor which reduces the
voltage and therefore the current of the smoke elements. The circuit
regulates the current to about 1 amp. The resulting voltage on the
elements is about 6 volts.

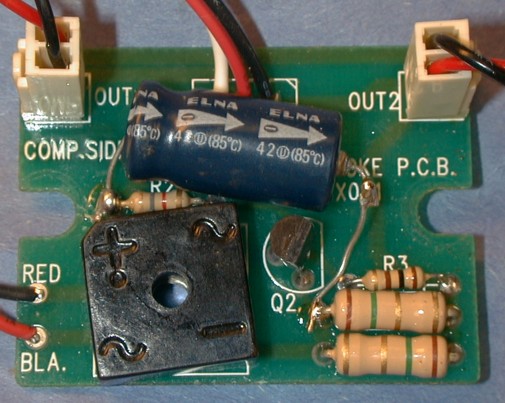

The 50 uF capacitor shown on the schematic is a
standard modification to improve the performance of this kind of
regulator when running at low speed and with Aristo PWC. If you don't
use PWC, the capacitor will do no good. The capacitor is soldered
between the + and - terminals of the bridge rectifier circuit. These
points are shown in the photo.
[ Top ]
Sound
USA Trains offers a sound system for the GP-7/9 but I don't have one. From the information that I have seen, I strongly suspect that it is a PH Hobbies unit similar to the unit offered for the Aristo RS-3.
USA Trains also offers a remote control box that is supposed to allow the horn, whistle and cab chatter to be operated remotely. The offer also indicates that the control unit could be used to trigger other kinds of sound systems is available as well.
[ Top ]
Cosmetics and Details
This is a highly detailed model with excellent mold work and equally excellent paint. However, there are some minor problems. Like most USA Trains products, the end user is required to install details such as handrails and such. Once these are added, the engine still fits in the Styrofoam inserts in its box. If you install Kadee couplers, some minor trimming of the Styrofoam inserts is necessary.
Most of the engine detail comes detached from the engine and must be user installed. Some of the parts, such as the eye bolts that hold on the cut levers, are small and not very sturdy. I managed to break a couple of the eyebolts during installation (or removal when I got one in the wrong hole). Some of the parts don't fit snugly in their mounting holes and needed a little drop of Zap-CA gap filler CA to hold them in place.
The instruction manual isn't completely clear as to where the parts go as the diagram isn't an accurate representation of the actual engine. The air hoses come in a left and right configuration and don't look like the picture in the manual. After I saw a photo of the PRR version in Model Railroader, I realized that I had installed them backwards. Then ends of the hoses should point inward so that they fit in the pockets in the end frames. The eyebolts for the cut levers go in the lower set of four holes. The handrails go in the upper set of four holes.
The handrails are all metal with metal stanchions. Some of the stanchions fit snugly in their holes and some don't. The end chains didn't hang well due to paint that had "glued" together some of the links. It was a small matter to break them apart again so that the chain would hang smoothly.
There is one handrail that fits across the end of the steps just above the cut lever that is not shown in the instructions.

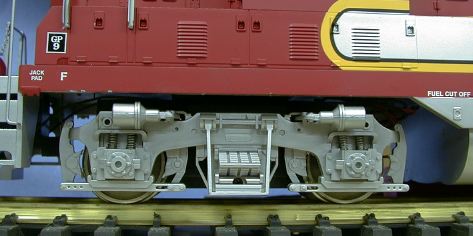

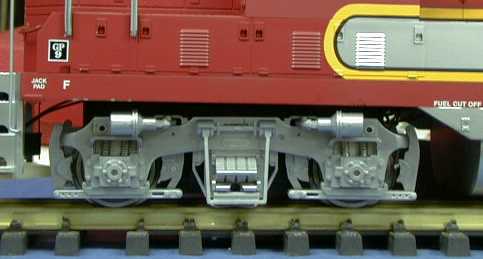

The hanger straps on the trucks press on the side and hide the truck sideframe mounting screws. They don't fit in real snugly either, but you can't glue them in place because you'd have to break them off to access the screws if you ever needed to get the sideframe off.
On my GP9, the dynamic brake pods are just sitting on the top of the engine. If one should try to use them to pick up the engine, one might be in for a surprise when the engine drops to the floor. Don't use them for a handle.
The fans, 5 of them on my engine, all turn but they only freewheel. There is nothing to drive them except if you blow on them.
On various road names, the dynamic brake pods, and air tanks and other details are different. Check out the pictures at the USA Trains web site for details on what comes with each road name.
The Warbonnet version of the GP9 has a steam generator exhaust and vent port on the short hood so it qualifies to pull passenger cars. I don't know if these are on the other versions.
The cab doors open to reveal a moderately detailed cab interior. The engineer figure must be the twin of the one that drives the Aristo RS-3.
[ Top ]
GP9 Wheel Upgrades
The wheels that come with the GP9 are smaller
than they should be (under 33") and they have a tendency to pit and
pack up with crud easily causing the engine to sputter badly and
require wheel cleaning much too often.
I installed these North West Short Line aftermarket wheels to see if they worked any better. These 40" wheels are considerably larger than the stock wheels and are made of solid nickel silver with steel axles. The wheels are not plated so that there can never be any plating problems.
This version of the wheels have a semifinescale flange so that the do not track as well on rough track as the stock wheels. They would be more suited to indoor layouts or for display. The larger wheels lift the engine off the track by about 0.1" so that now the strap hangers have respectable clearance to LGB turnout motors. They also lift the engine enough so that the sliders will not reach the track anymore so I removed them. There is insufficient clearance between the stock brake shoes to clear the larger wheels so some considerable grinding has be done to remove enough of the shoes to allow the wheels to fit.
Initially the wheels electrically performed quite well. I didn't run them as long as I would have liked because I got tired of rerailing the engine as it continually derailed on my less than perfect outdoor track. It is clear that the larger flange version will be required for outdoor usage. Even so, the wheels seemed to be starting to pit. The high copper content of nickel silver was apparently making itself known.
I contacted NWSL about the derailment
difficulties of the finescale flange and they provided a replacement
set of 36" wheels with a larger flange. A 40" wheel with a large flange
just won't fit next to the brick. They had these made special in
stainless steel so I got a chance to try a harder material too. The
engine doesn't sit quite as high with the 36" wheels so that the track
sliders do reach down to the track.
These wheels seem to perform properly. The flange is large enough such that the engine had no derailment difficulties, and after about the same period of running (a half hour) that I had on the nickel silver wheels, there is no sign of pitting of the wheels. There was some discoloration but this appeared to be material from the track that was loosely adhering to the wheels. Where the treads scrubbed, the treads were clean.
The tractive effort of the loco did degrade with the new wheels, see my Tractive Effort Tips page for the details. The loss of four traction tires does indeed reduce the traction of the engine. This loss can be compensated with more weight. Just pressing on the top of the engine a little while it was slipping caused it to grab and go. I feel that the addition of 4 more points of power pickup more than offsets the loss of the tires. Besides, the engine draws more current than is good for it anyway, more traction just allows it to draw more current and run hotter.

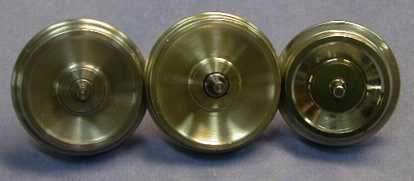

From the photo, it is
obvious how much bigger these wheels are and how much smaller the
flange of the 40 inch wheel is. The largest wheel is the nickel silver
wheel version, NWSL p/n 2522-6 at about $30 a set. The middle sized
wheel is the 36" stainless steel wheel version at about $50 a set. The
36" wheel is available in nickel silver also. The smallest wheel is the
stock USA Trains wheel which works out to just under 33 inches.
The wheels come as 8 half axles. The old wheels have to be pulled from the plastic drive gear, the bushings removed and reassembled with the new half axles. The new wheels do not come grooved for a traction tire.
Replacement of the wheels
requires the removal and replacement of 40 screws so it takes some
time. However, the wheels come with an excellent set of instructions so
the work not difficult or confusing. This photo shows one sideframe
after the axle journals have been removed and the other with the
journals still in place.

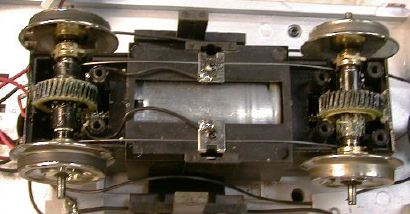

This is the brick after both sideframes and the bottom
cover has been removed. Notice how big the motor is. This is a high
current motor which is one reason why this engine pits its wheels so
badly. The stock wheel at the upper right is so badly pitted that it
looks like it has a traction tire.
Pulling the wheels and gears
apart can be a challenge. NWSL recommends their gear puller, but since

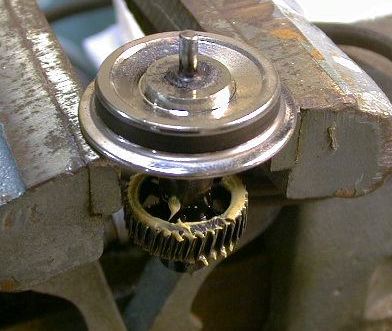

I didn't have one, I improvised. If the axle assembly is hung from the
open jaws of a bench vice, the other wheel can be pressed straight
downward until it pops off. The gear can be pressed downward also but
it is small such that the teeth dug into my thumbs enough to make it
quite painful. I opened the jaws of a large pair of needle nose pliers
around the axle above the gear and pressed on the jaws to press off the
gear.
The bushings can usually be pulled off with a pair of gas
pliers, but two of them wouldn't come off without the use of this gear
puller. The bushings pressed back on the new axles with no difficulty.
The drive gear needs to be well centered on the half axles. An dial
caliper comes in really handy in setting the 0.685" spacing required
between the edge of the gear and the wheel back. When properly set, the
back to back spacing of the wheels is the recommended 1.600". The
stainless set has a much thicker flange, so its back to back spacing is
less. Mine are set at 1.500" to 1.525"
[ Top ]
GP9 Disassembly
The GP9 is fairly easy to get into, although there are a lot of screws that need to be removed. Since disassembly of any engine will usually result in some rough handling, it is a good idea to remove the easy to break details first. On the GP9, the handrails MUST come off. Pull them out of the mountings and set them aside.
The body comes off more or less as a solid unit. There are four shorter screws that secure the walkways. These are visible underneath the frame surrounding the cab. Two additional screws retain the fuel tank, but it is not necessary to remove the tank to get inside the engine. Eight more longer screws are recessed about 2" up inside raised posts. There are actually twelve posts, four around each truck and four more near the center. However, only eight of these were actually used. You'll need a long #1 Phillips screwdriver to get to these screws. I used the same 6" long #1 power screwdriver bit that I used to get at the roof screws on Aristo Heavyweights. This tool was a little hard to find, I had to go to a speciality tool store.
Once all these screws are removed, recovered and stored, lift the entire body off as a unit. One of the running board assemblies will come off by itself. The other is part of the cab. The cab can then be slid out of the body shell for access to the cab interior.
[ Top ]
GP9 Lighting
The GP9 uses
incandescent bulbs for both the number boards and headlights. The
markers are bi-color red/green LEDs. The boards and lights can be
easily removed for service or modification. Two screws hold in the
board assembly. A weak adhesive holds in the marker panels. It doesn't
take much pressure to break the bond. Then the panels can be pushed
out. The allows the headlight assembly to then be pushed out.

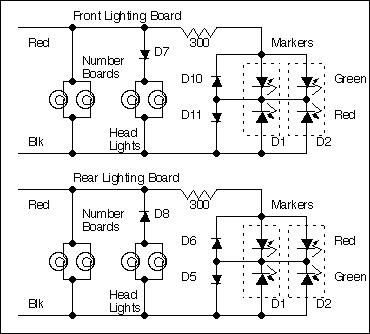

The boards
have a different layout, but are essentially the same schematically.
The headlight steering diode (D7 or D8) is reversed. The actual LEDs
(D1 and D2) are also reversed.
The boards are wired in parallel on the main circuit board so that the "red" input on one board is connected to the "red" input on the other board. The "black" inputs are similarly connected. The actual wire colors may vary, refer to the markings on the boards themselves.
Conversion of the lighting to DCC or radio control will require some significant changes to the boards if constant intensity is desired. I'll be doing this myself soon.
If constant intensity is not required, then wire the boards to the motor circuit of the decoder or receiver and at least the directionality will be retained without the need to modify the boards.
At 20 volts DC in to the board, the number board lamps draw about 115 mA, the headlights about 75 mA and the markers 55 mA for a total of 245 mA.
[ Top ]
GP9 Interconnection Schematic

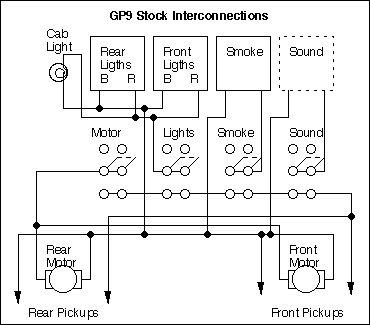

All of the major interconnections in the GP9 are one
on a switch circuit board. The switches poke through the frame near the
front truck. The power pickups, motors, lighting boards, cab light, and
smoke unit are plugged into this board. There is also a connection for
an add-on sound system.
The
interconnections are pretty straightforward. All of the loads and one
pair of pickups are bussed together on the board. The other set of
pickups and all four switches are connected. Each switch is routed to
its respective load.
The easiest method to install a DCC decoder or track powered receiver will be to unsolder all four motor wires and reconnect them back to the the motor output of the motor controller. The power input to the controller would then hook back to one of the motor terminals. The lighting will stop working correctly though. With DCC, all the lights will come on all the time. With constant DC on the track, the lights may or may not correspond to the engine direction. Modifications necessary to get the lighting to work properly will be substantial.
[ Top ]
GP9 DCC Installation
I've had this loco for four years, and up until
now, I've never been inside. This is because I realized that the GP9
was not a candidate for DCC installation because no available decoder
would handle the very high stall current of the USA Trains locos.
However, NCE has just come out with a very beefy decoder especially
designed for the USA Trains Locos. The D808 has an average current
rating of 8 amps and a stall current rating of 30 amps.

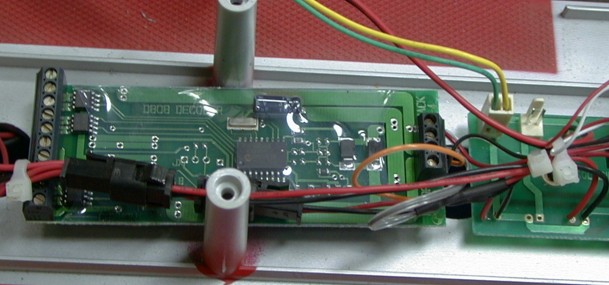

The D808 can be easily placed aft of the switch board. It is just a little bit too wide to fit between the hood mounting posts, but a few seconds of file work on the posts makes enough room. The decoder is secured to the frame with a small piece of Velcro.
I haven't beat this decoder up yet, but if it works as well as its smaller cousins, it should handle this loco fine.

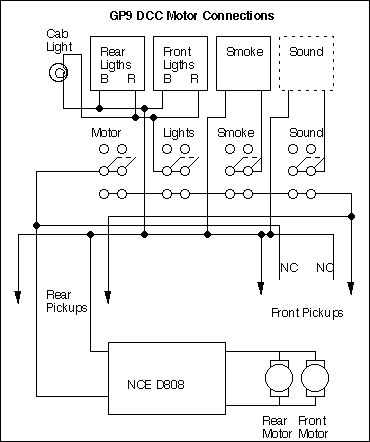

At this point, only the motors have been hooked to
the decoder. I just unsoldered all four motor wires and wired them
together (red to black) then to the motor terminals of the decoder. The
power terminals of the decoder are wired backt to the terminals on the
switch board that used to go to the rear motor. I am going to leave the
smoke wired directly to the track through its own switch. The lights
will require considerable work to get them work properly.
Eventually, I'm going to install a Soundtraxx DSX sound only decoder (I have one lying around withe EMD sound). I'll wire it to the sound power connector.
Since all the loads in the loco are wired through the switch bank, it will be no problem to run two decoders. During programming, the lights, smoke and the other decoder will be turned off so that the remaining decoder will work properly on the programming track.
This page has been accessed times since 30 Oct 1999.
© 1998-2002 George Schreyer
Created 29 May 1998
Last Updated September 15, 2002
