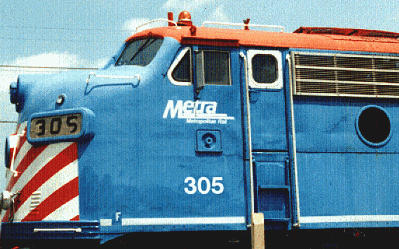

Metra 305 with No. 372 Beacon

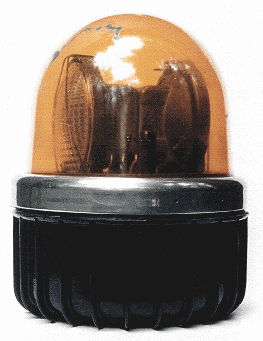

Side View with Dome

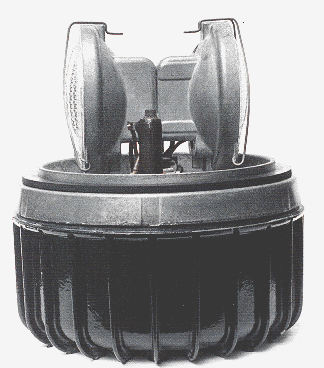

Side View with Dome removed

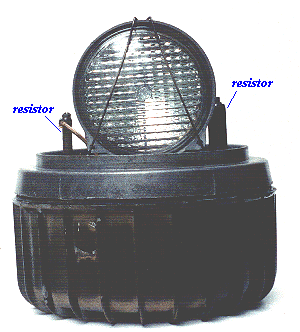

Side View with Dome removed
Note the 2 voltage dropping resistors (5 ohms).

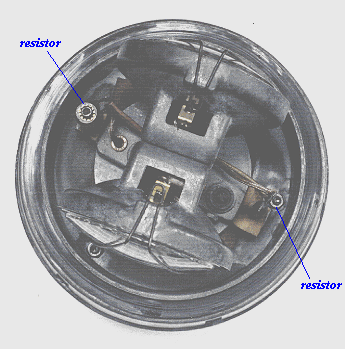

Plan view

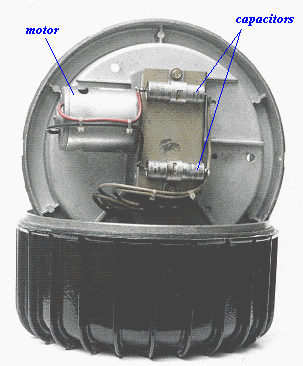

Underside of plate securing revolving mechanism
Note the 2 rf suppressor capacitors (0.2 mfd @ 400 volts).
Source:

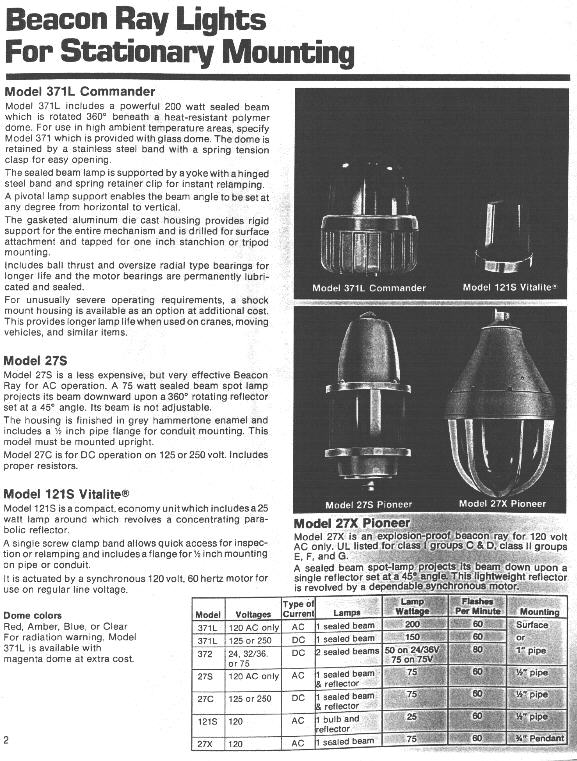

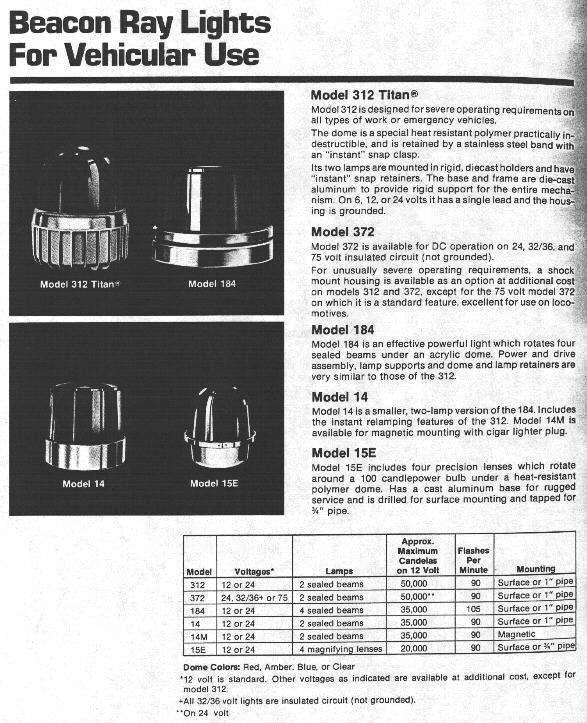

Federal Signal Corp. - Signal Division - Bulletin 107
The following literature is old and for historic purposes only, and that it represents
those products only at the time of the printing of the bulletins.
