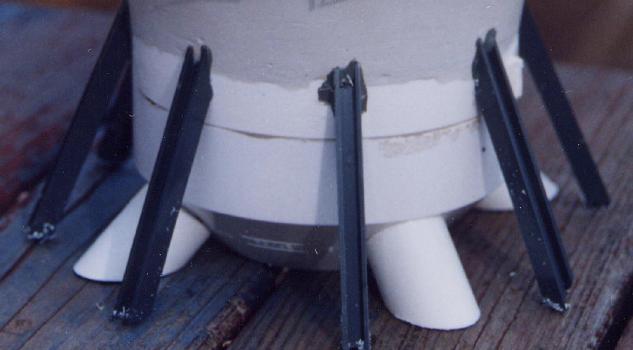

View of the inverted furnace body, showing how gravity was employed during the attachment of the bottom-half uptake pipes and the I-braces. This ensured an even, flat support plane for the bell platform. (NOTE: The actual gluing was performed on a smoother, cleaner surface!)
