P4 Signal Installation
The following addition was planned and carried out by Joe Barcia
and Skip Densing. The small addition of a 2 arm semaphore signal
will actively protect the 30 degrees crossing where the P4 Passing
Siding crosses the 3rd Line. The signal is wired into the P4 turnout.
When the turnout is switched, the signal will read stop, allowing
cross traffic from the Main Line to traverse the 3rd Line's 30
degree crossing without accident. When the switch is normaled,
the signal will read proceed, allowing normal operations to continue.
click any smaller picture to
view a larger picture

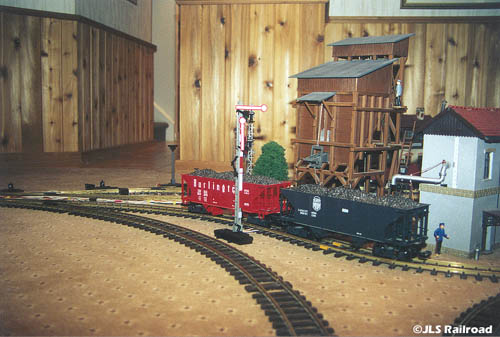

P4 Signal, seen in the foreground of the photo, P4
switch and the P4 Passing Siding are located to the left of the
photo.

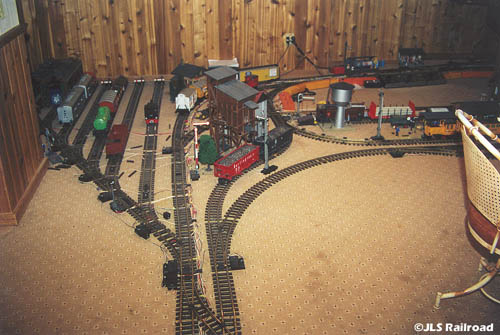

A wide shot of the area where the P4 signal was installed.
