Jurassic Junction
RR Wiring Project

Click Here For Wiring Diagram Photos

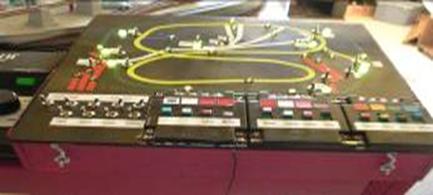

The goal of the project was to create a single operating Control Panel from which I could operate / dispatch the entire layout from a simplified control center.

Control Panel replaced a myriad of poorly laid out selectors, connectors and switch control boxes into a single control center for ease of operation and access.
