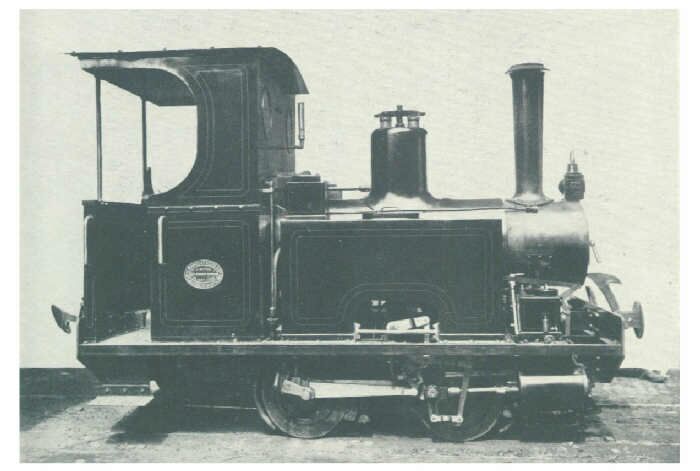

NZR Way & Works Branch
Introduced: 1938
Number in Class: 2
Locomotive Specifications
|
|
| Engine Weight: 7.5 tons |
Tender Weight: | Total Weight: 7.5 tons | Adhesive Weight: 7.5 tons |
| Length over Buffers: |
Total Wheelbase: | Engine Wheelbase: | Coupled Wheelbase: |
| Tender Wheelbase: | Driver Wheel Dia.: 22" | Cylinders HP: Two - 6" x 10" |
Cylinders LP: |
| Grate Area: | Evaporative Area: |
Superheated Area: | Working Pressure: 160 psig |
| Tractive Effort: 3072 lbs f |
Coal Capacity: | Oil Capacity: | Water Capacity: |
| Remarks: Originally purchased by the Public Works Department, the NZR took over two of these locomotives in 1938 and 1939 and were used on various line construction and improvement projects. Both locomotives were withdrawn from service around 1948 and scrapped in 1954. |
|
|
