Introduced: 1880
Number in Class: 7
Locomotive Specifications
|
|
| Engine Weight: 36.0 tons |
Tender Weight: | Total Weight: 36.0 tons | Adhesive Weight: 22.8 tons |
| Length over Buffers: 33' 0" |
Total Wheelbase: 23' 7" | Engine Wheelbase: 23' 7" | Coupled Wheelbase: 6' 9" |
| Tender Wheelbase: | Driver Wheel Dia.: 36½" | Cylinders HP: Two - 13" x 16" |
Cylinders LP: |
| Grate Area: 14.0 sq ft | Evaporative Area: 741 sq ft |
Superheated Area: | Working Pressure: 130 psig |
| Tractive Effort: 7705 lbs f |
Coal Capacity: 1.5 tons | Oil Capacity: | Water Capacity: 1162 gals |

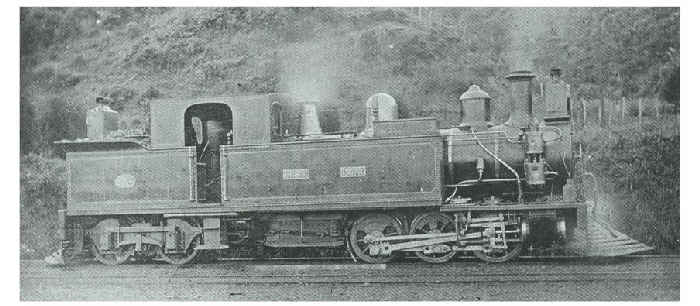

| Remarks: Another Single Fairlie type, rather larger and heavier than 'R' class engines. Originally assigned to the Wellington-Summit section of the Rimutaka line, they were also employed in Taranaki and Wairarapa districts. Like the "R" class, they were fitted with Walschaerts valve motion, were good steamers, rode well with a roomy cab that applealed to engine crews. These splendid little lcomotives enjoyed a service life of more than 40 years. |
