Plans for CPR Victoria shops 1913

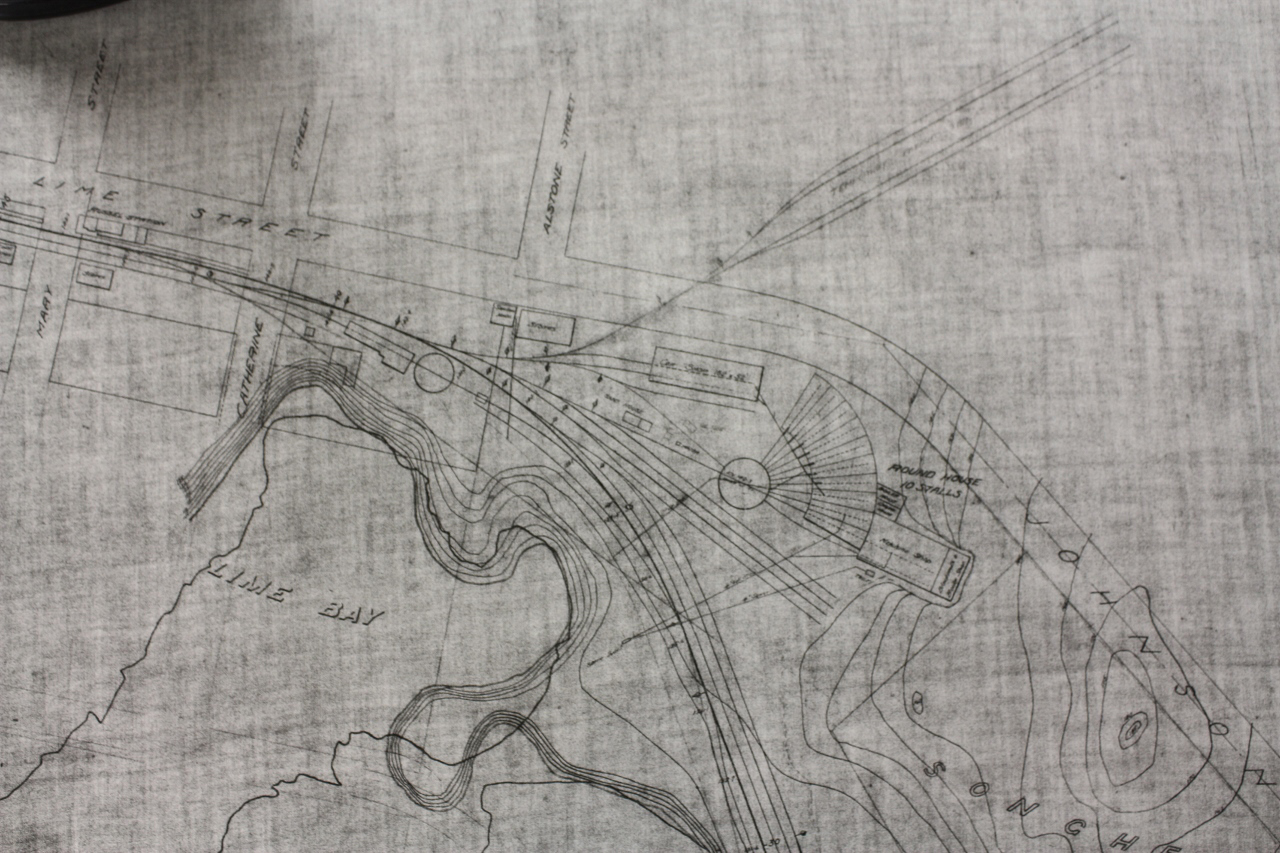

Plan of shops and yard including Russell station at far upper left.
Note old wooden enginehouse and wooden turntable still in place.

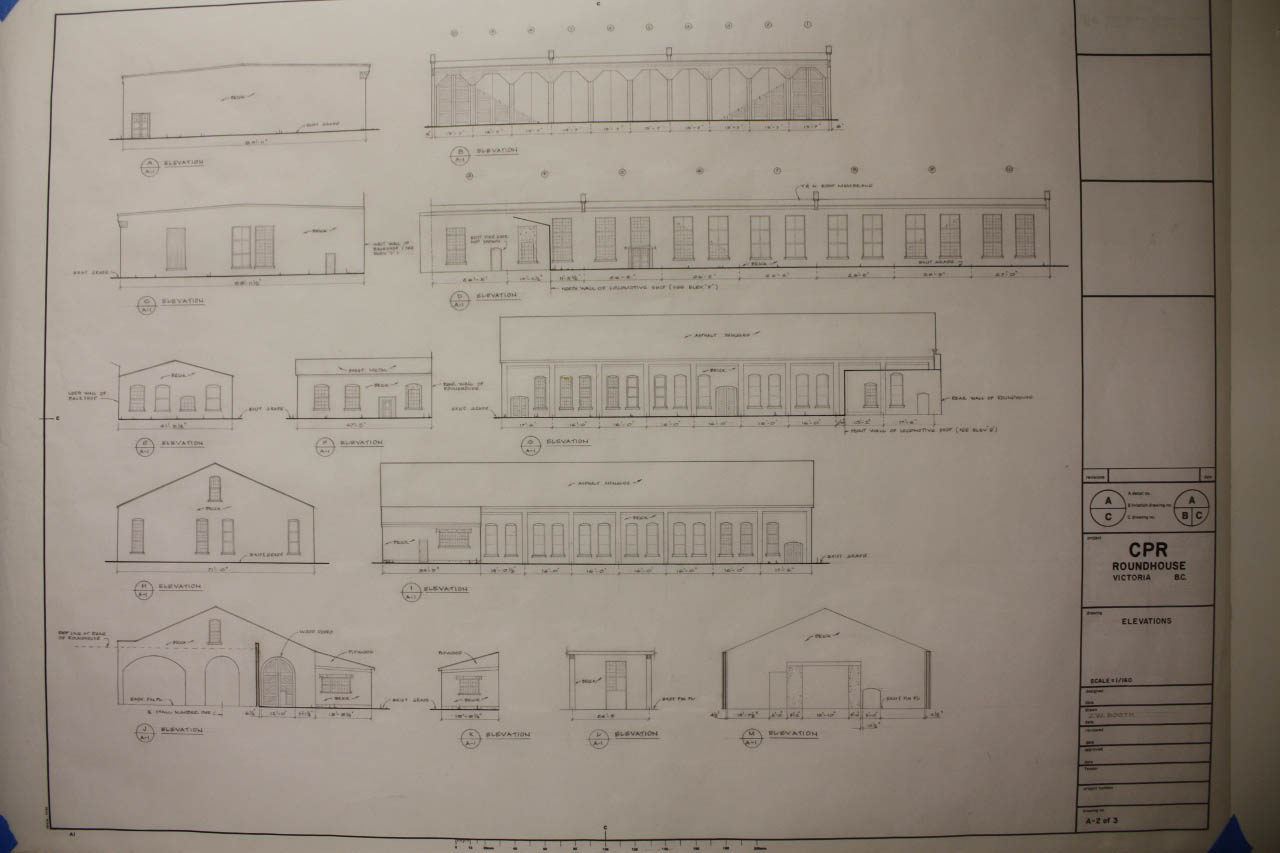

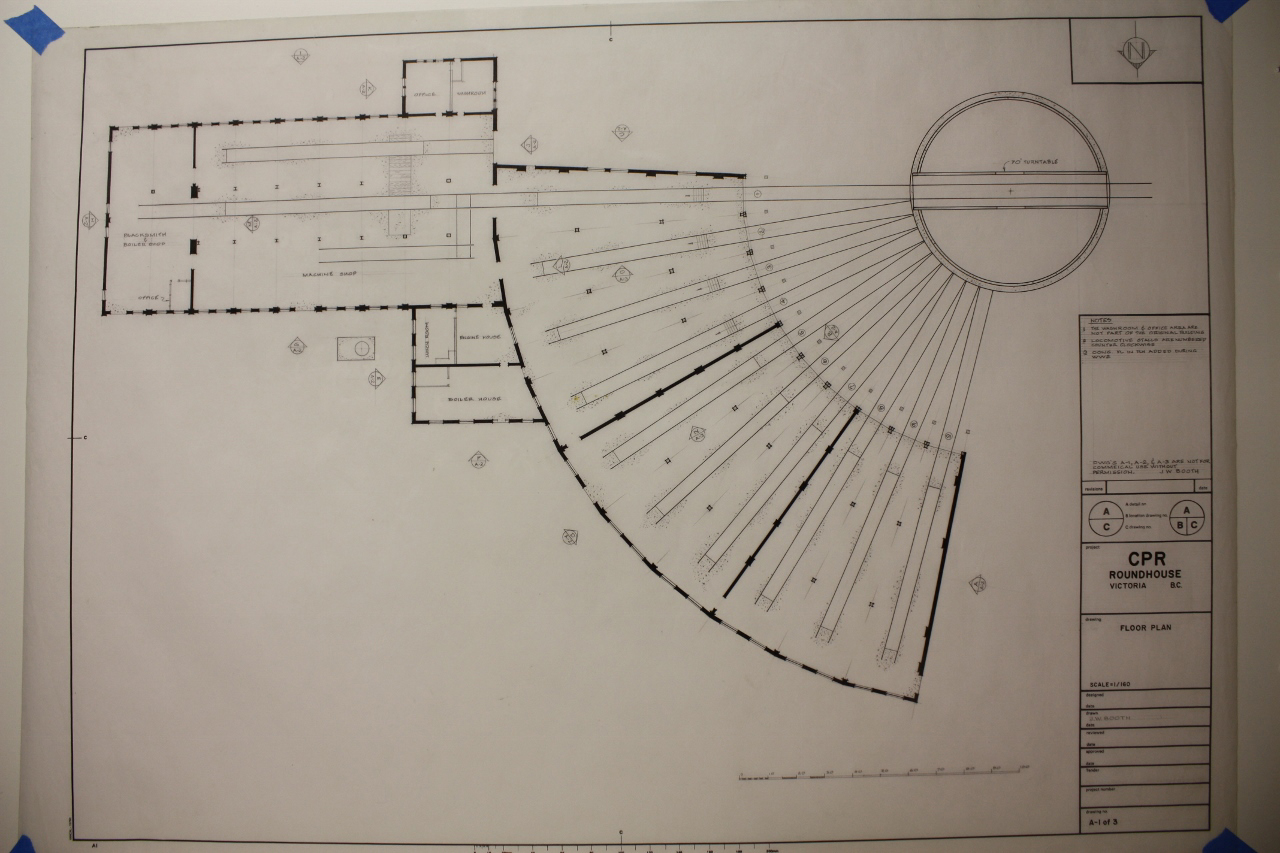

Roundhouse: Floor plan and elevations plan.

10 stalls with #1 going through to Backshop and into blacksmith shop with boiler shop and office.
A second track into backshop building bypasses the turntable.
Small appendage contains boiler house, engine house and lunch room. Turntable 70 foot.

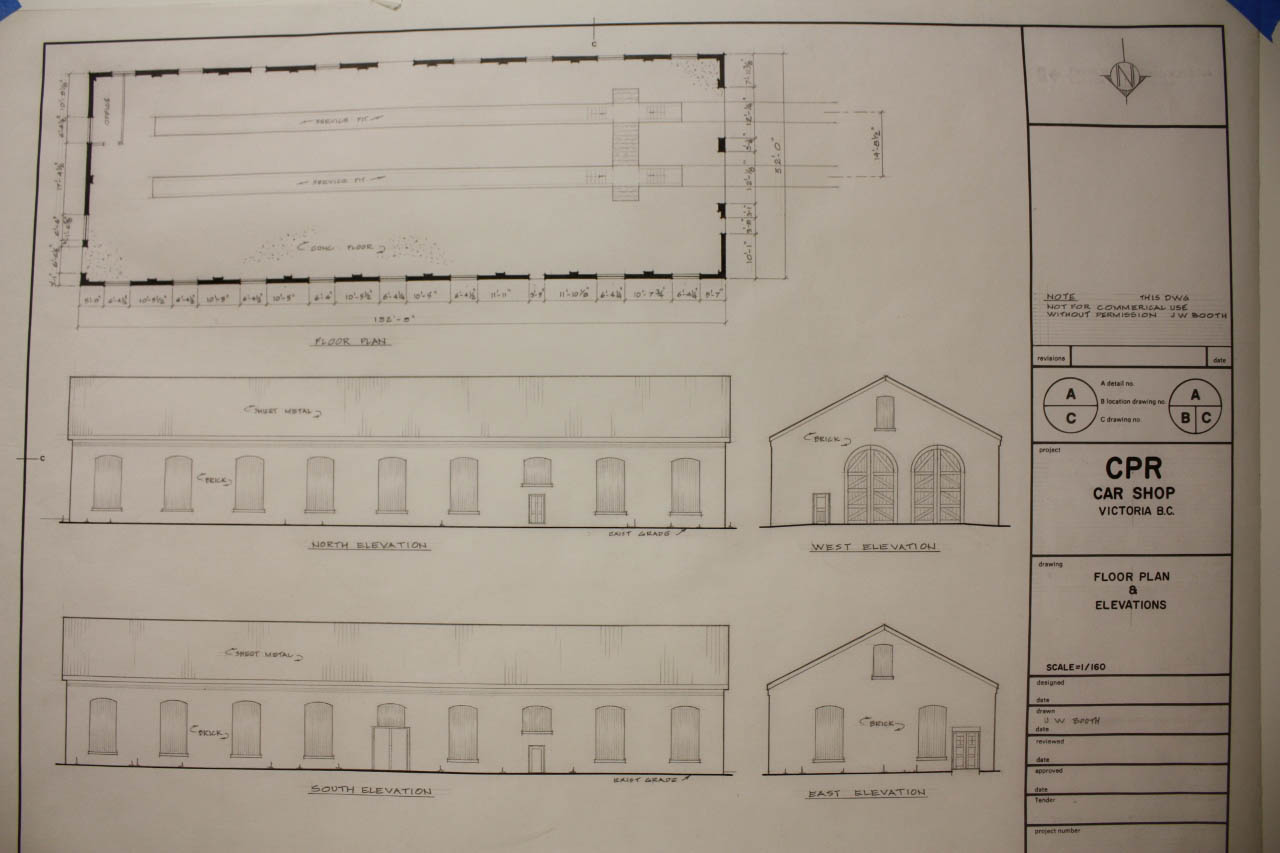

Car shop: 2 tracks with inspection pits. 152 feet x 32 feet with sheet metal roof.

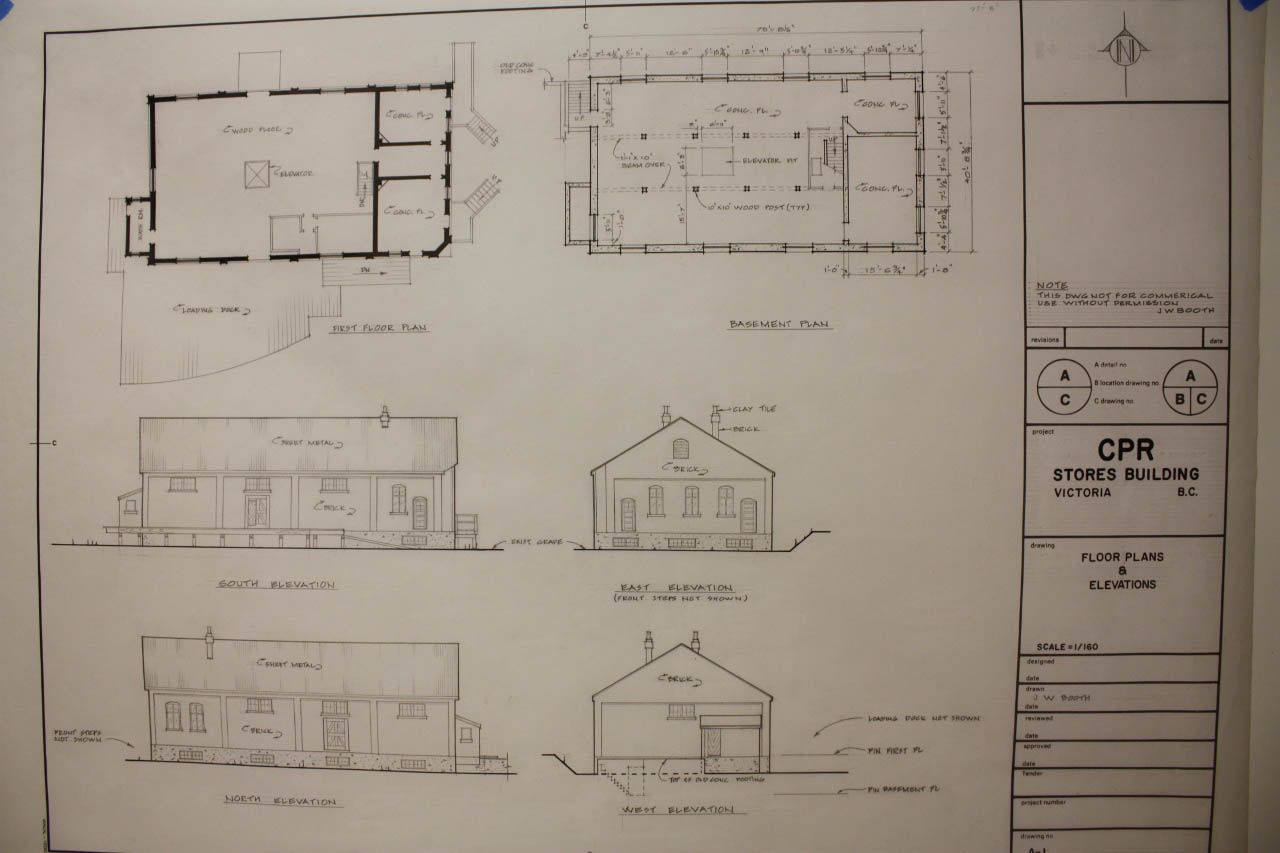

Stores building 75 feet x 40 feet. with sheet metal roof.
