A word about the current P:64 standards. The original proposal listed below has unfortunantly proved unworkable.

The NASG Recommended Practices, also listed below, are not truly Proto as they contain compromises to accommodate RP25 wheels. That said they are achievable with commercial components. Code 88 wheels are availiable from either Des Plains Hobbies or NWSL and look much better than Code 110 wheels. Together, this makes a good semi-proto track/wheel system and may well be an acceptable compromise for some.








Standard, Recommended Practice, or Practical Application
Track
Gauge (G)
Check
Gauge (C)
Span
(S)

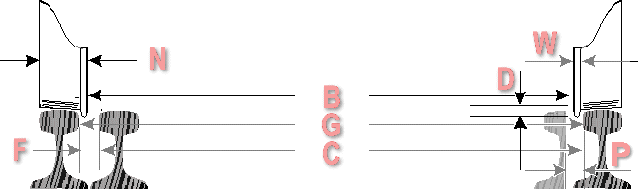

Flangeway Width (F)
Point to Rail (P)

Back to
Back (B)
Tire
Width (N)
Flange
Width (W)
Flange
Depth (D)
Min
Max
Min
Max
Min
Max
Min
Max
Min

Min
Max
Min
Max
Min
Max
Min
Max
1/64th Prototype (inches)
.883
.889
.855
.855


.029
.030
.083

.832
.832
.086
.086
.018
.022
.022
.022

Proposed
P:64 Standard (inches)
.883
.90*
.853
.855


.030
.040*
.083

.827
.833
.086
.088
.018
.020
.018
.020
NASG
P:64 Recomended Practices(inches)
.883
.909
.851
.851

.822

.041
.071
.824

.087




.026
NMRA/NASG
S scale Course (inches)
.875
.898
.823


 .775

.057



.777

.122
.126
 .032
.036
.023
.031
NMRA/NASG
S scale Standard (inches)
.883
 .895
 .839
 .848
 .791
 .798
 .035
 .050
 .086
.800
 .809
 .108
 .112
 .028
 .032
 .020
 .030



















NMRA RP-25 Code 110 wheel
.110
.110
.030
.030
.025
.025
Des Plaines Hobbies/NWSL RP-25 Code 88 wheel
 .088 .088 .025 .025 .023
.023
NWSL P:64 Code 87 wheel
 .087 .087



Proposed P:64 wheel
 .086 .088 .018 .020 .018
.020
*use this wider dimension only on curves
