Component parts



Lateral view ->>>>>





Assembling section with interior details will be later available



Base outside shapes




Wire web shields




Headshields




Rods and stud-bolt

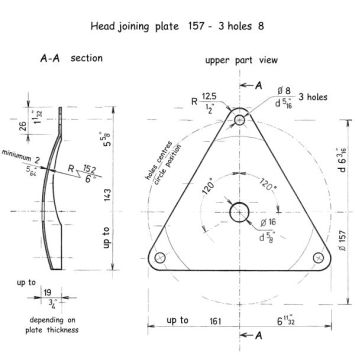

Headplates




Headnuts




Other details

Wire web (straight brims) shield joining

Wire web (turned bottom) shield joining

Poles top end (in-going tenon) detail


Manufacturing pieces exposed in the drawings above is unrestricted as long as the outside shape and dimensions of assembly (support-base, wire-web shield, headshield, head nut) are preserved.

Please contact us for more details
