STANDARD TALL TRUNK-CONICAL POST-TOP LUMINAIRES

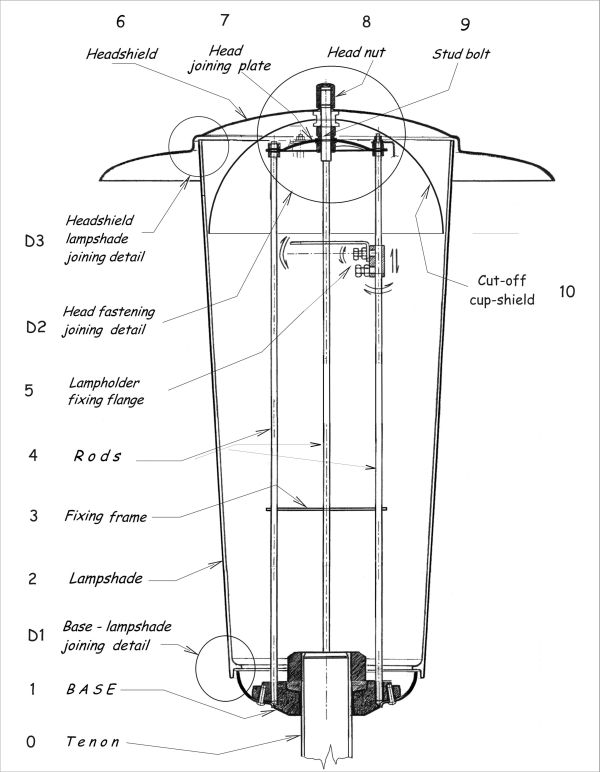

Assembly section - component parts


Pieces names are in order from base to top


10 - Cut-off shields


9 - Stud bolts


8 - Head nuts


7 - Head joining plate


6 - Headshields


D2 - Head fastening detail


D1;D3 - Lampshade joining


4 - R o d s


3;5 - Fixing flanges and frames


2 - Lampshades


1 - B A S E S


0 - Tenons
