Shay 7 started as a standard Bachmann Shay, In this case I stripped it down to the frame. |
 |

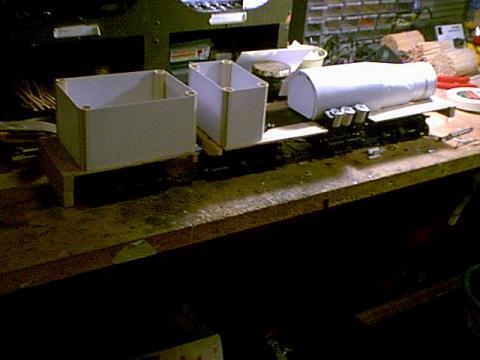

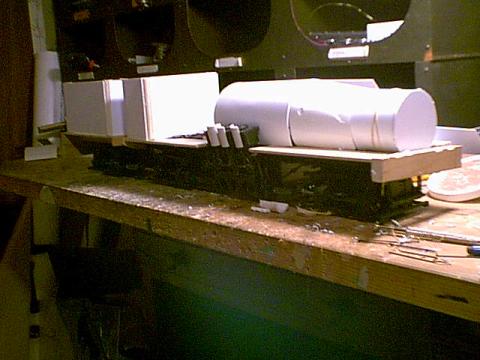

Added a new boiler, bunker, running boards, and built up a frame and tank over a third dummy truck |
 |

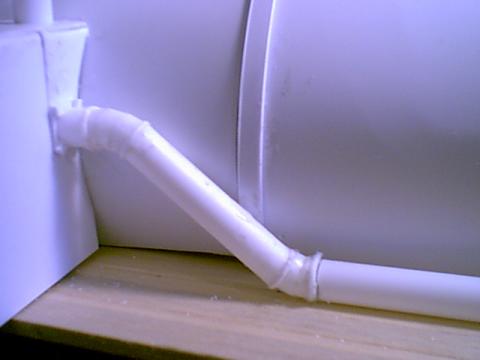

Closeup of the exhaust pipe running from the engine assembly to the smokebox and stack |
 |

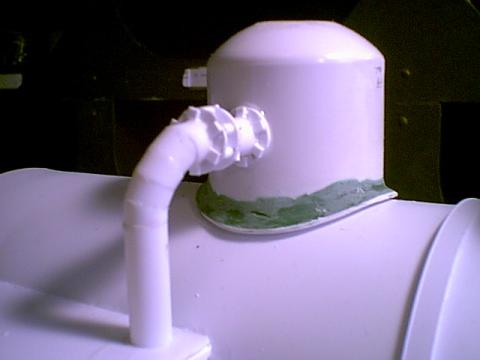

The steam supply line from the steam dome to the cylinders |
 |

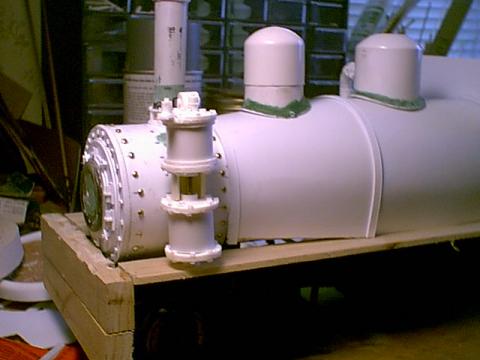

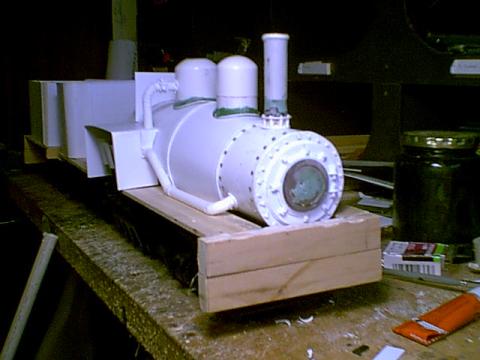

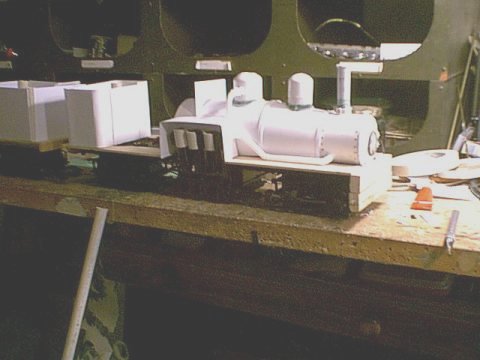

End beams have been added as well as a smokebox front and stack. Domes are made from PVC plumbing caps |
 |
Overview of the Engineer's Side |
 |
Cast resin airpump |
 |

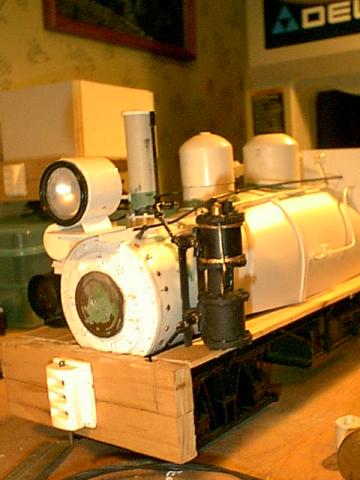

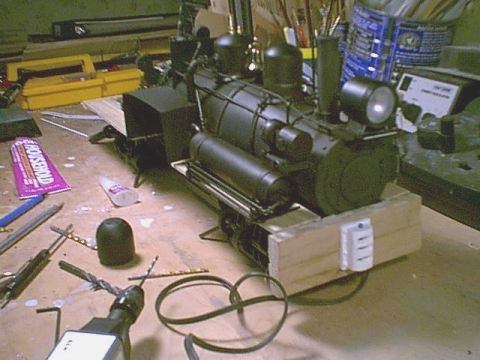

Headlight added, pump painted and plumbed appropriately |
 |

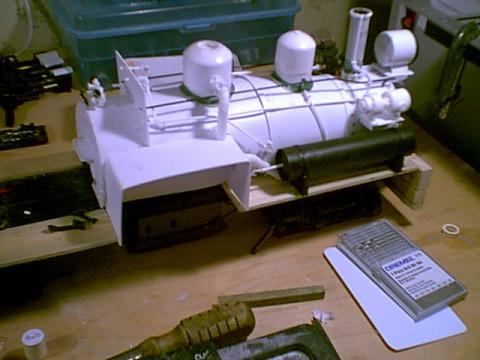

Air reservoir and basic details added to the boiler |
 |

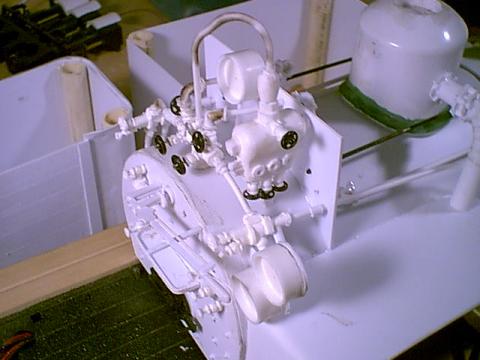

The detailing of the boiler backhead |
 |

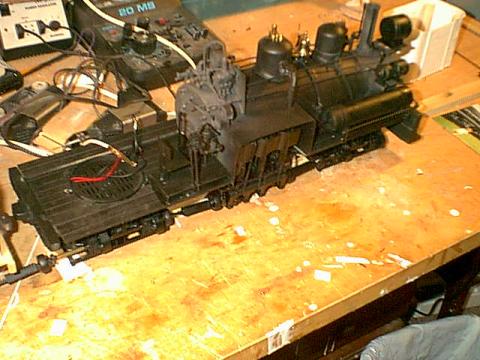

Boiler assmbly has been painted |
 |
Brakestands have been installed |
 |

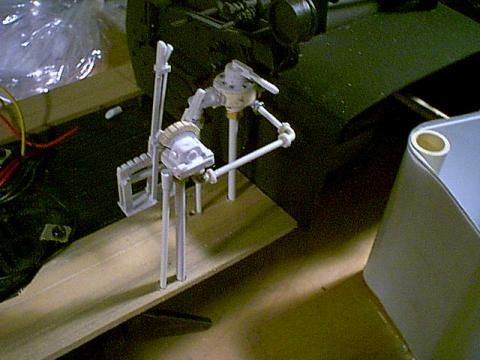

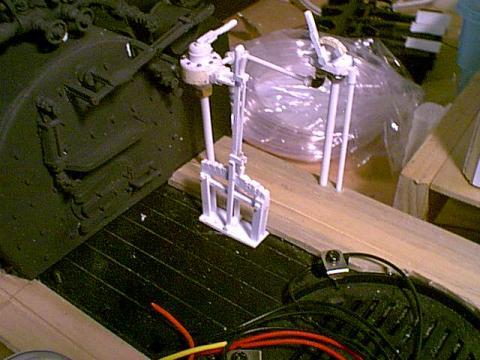

As well as the Johnson Bar (Reversing Quadrant) |
 |

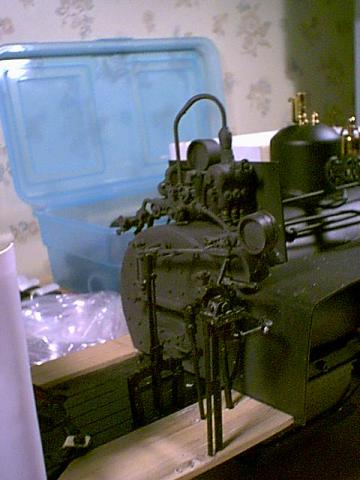

The backhead and cab controls have been completed, and everything painted. |
 |

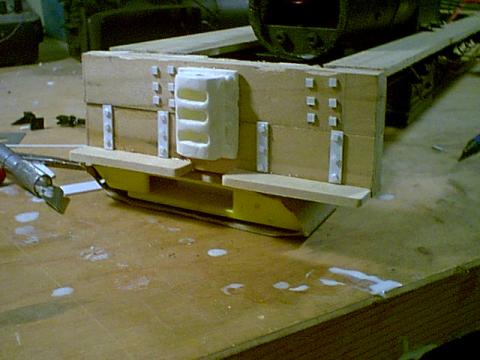

Details beginning to be applied to the Pilot |
 |

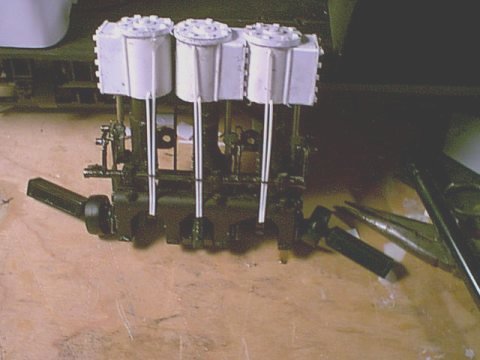

Engine assmbly with larger cylinders and blow down pipes installed |
 |

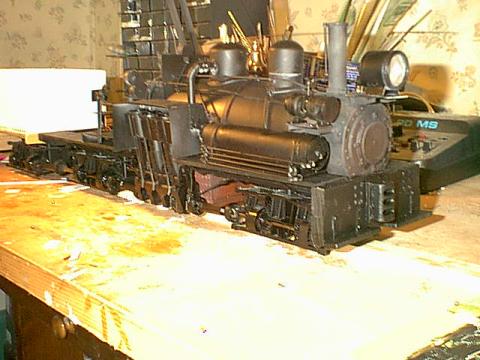

Overhead view of the painted locomotive |
 |

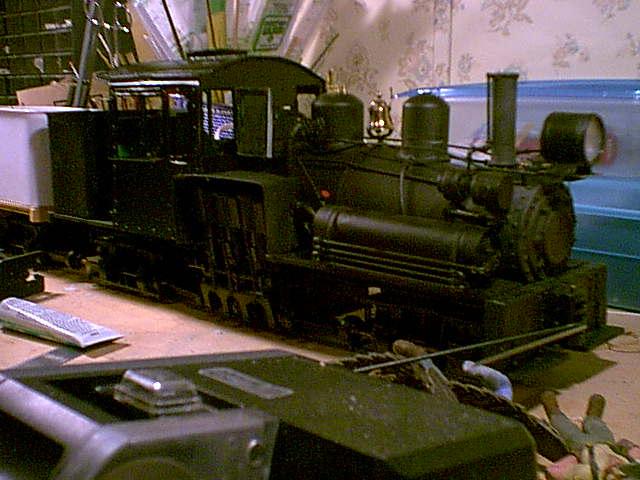

Front 3/4 view |
 |
Cab from the engineer's side |
 |

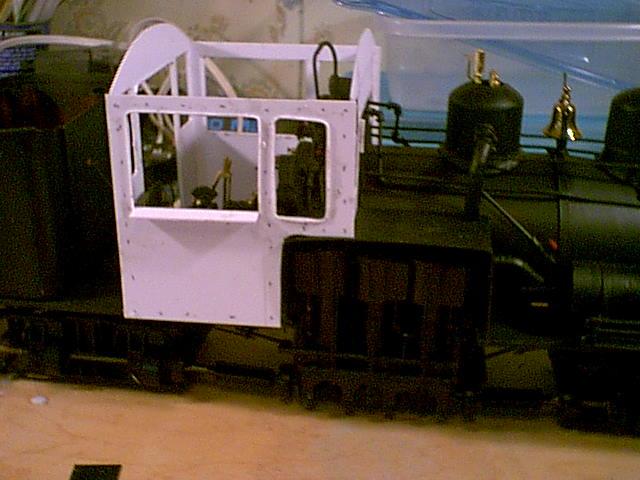

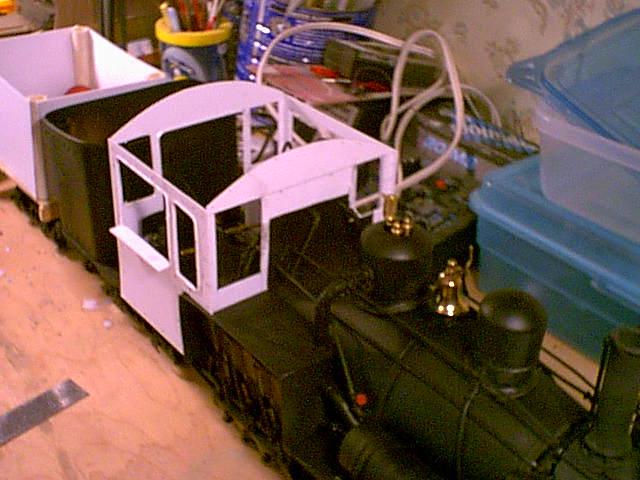

Cab is taking Shape |
 |
Finished cab in place |
 |
The tank has been finished, and painted with just the tank top left to paint |
 |

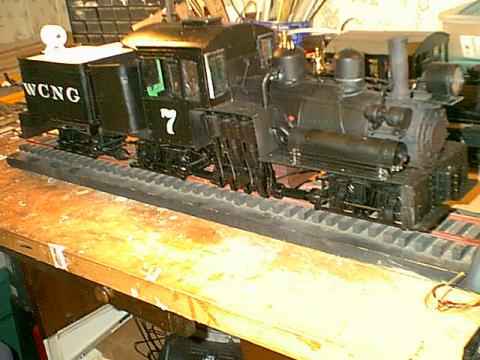

She's done! |
 |

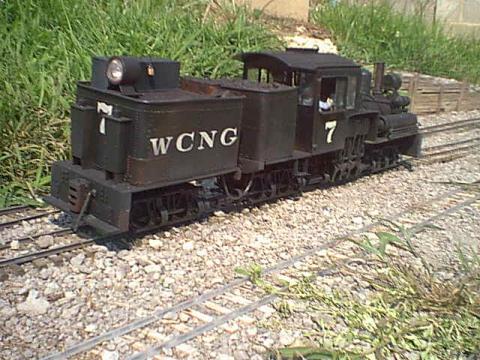

Off she goes for a hard days work! |
