G & D Davidson & Co., Hokitika

Geared Steam Locomotives


Home | Price | Dispatch | Gibbons | Johnston | McGregor | Builders | Owners | Oddities | Links

Images & Drawings

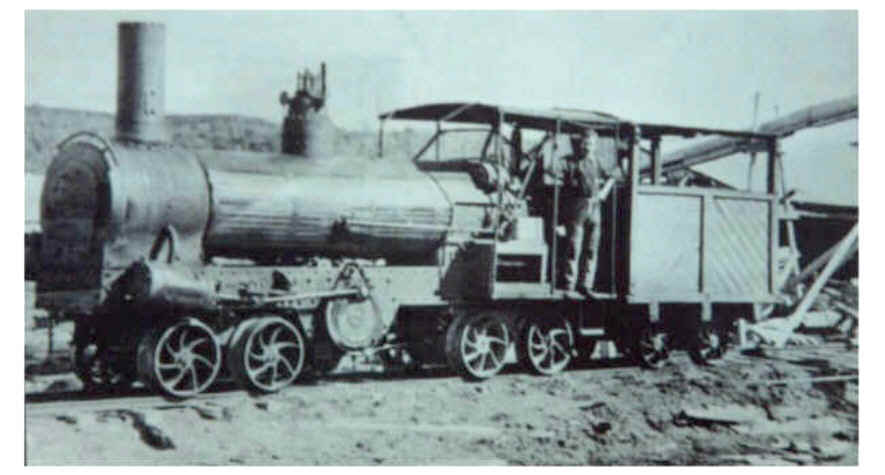

Davidson at Whakamarama with fuel tender
(C.G. Davys col.)

G & D Davidson Ltd. built twenty-seven geared steam locomotives at their Bealey Street, Hokitika foundry which was some distance from the railway station and not connected by rail. That did not stop them from steaming the completed locomotives, placing a few lengths of track under them and driving them along the streets. Davidsons purchased most of their boilers second-hand from New Zealand Railways, having been taken from "D" and "F" class locos when they were re-boilered. Dispatch Foundry at Greymouth built some new ones. The steel rail wheels and helical gear wheels were purchased elsewhere, but Davidsons did the rest of the work.


1911 0-4-4-0 Heavy

The Davidsons did not have sufficient room in or around their cabs for wood fuel and water, therefore it was left up to the customer to build, usually a four-wheel tender on which was mounted a water tank which was then piled high with wood slabs. Some tenders sported eight wheels in two trucks, while a few extended the chain drive from the rear axle onto the leading axles of the eight-wheel tender and thus provided extra adhesion and traction. Builders numbers were not used nor were definite records kept so it is difficult to identify all Davidson locomotives.

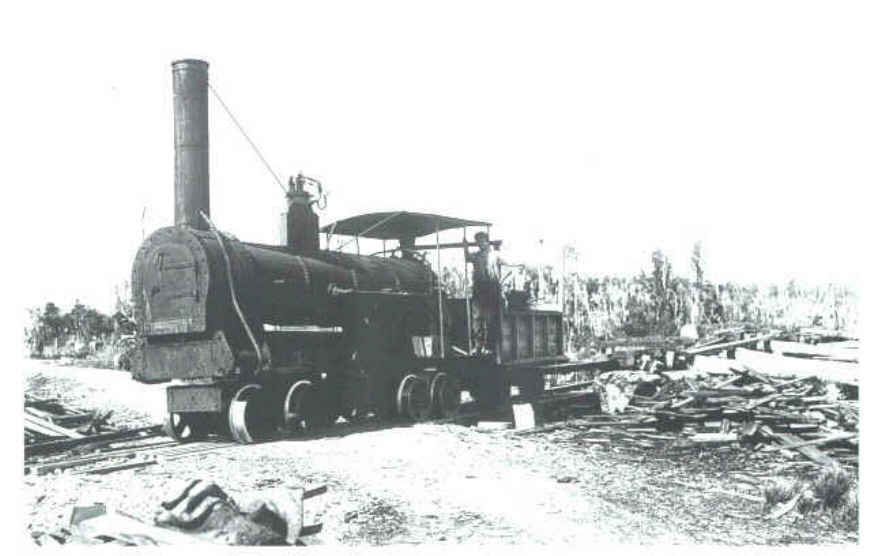

The picture depicts a Stuart & Chapman Davidson working at Ruru. This lokey is fitted with an ex-NZR F type boiler. (B.Thiem)

General dimension of these lokeys were: - Length 20ft-0½in (6109 mm), Wheelbase 11ft-1in (3378 mm), Truck wheelbase 2ft-10in (864 mm), Cylinders 9in x 18in (228 x 456 mm), Wheel diam. 25in (635 mm).



The most popular type built by Davidson had two almost horizontal cylinders outside the frame driving two disc cranks on a cross shaft. Sprockets on the cross shaft were connected by chains to one axle of each of the four-wheel trucks. Sprockets and chains coupled the axles of each truck. The cylinders were controlled by Stephenson valve gear. In some instances only the trucks under the lokey were powered. In others, the rear truck of the loco was connected by a chain to the front truck of the tender, giving drive to twelve wheels. The chain was patented by Davidson and was made so that shoulders on the links instead of the pins took the thrust on the chain in a standard chain. It also allowed some considerable side movement to compensate for the trucks turning.

The rest of the lokey was fairly primitive. The boilers usually left the works unlagged but some of the operators covered them with lengths of timber. The cab was just a slightly curved roof supported by six upright pipes. The design of the tender seemed to be left to the customer to work out. The average service life of the Davidson was 17 years and only one remains today, that being on display at Mawhera Reserve near Ngahere.


1911 0-4-4-0 Light

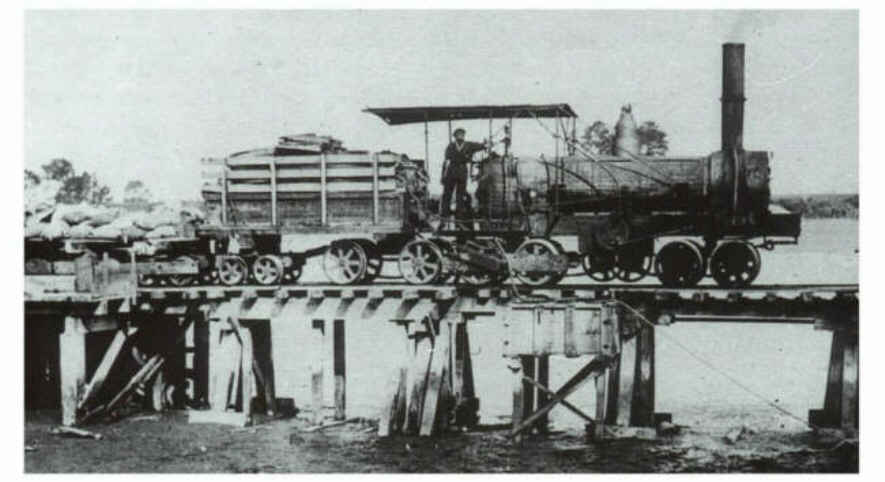

This photograph clearly shows some of the detail of the drive mechanism. The two horizontal pistons drove a cross crankshaft on which was mounted a small spur gear. This meshed with the large one that is visible which was mounted on a cross shaft fitted with a sprocket. This sprocket in turn drove the truck axles by means of Davidsons patented chain. The slack in the chains is clearly visible. Note also that the chain drive has been taken to the lead axle of the tender and that axle is linked to the rear truck by means of a connecting bar.

The photo shows the Whakamarama Land & Timber Co.'s Davidson working the wharf at Omokoroa near Tauranga (Bob Young col.)

General dimensions: - Length19ft-1in (5829 mm), Wheelbase 11ft-3in (3429 mm), Truck wheelbase 2ft-10in (864 mm).


Davidson had three classes of locomotives, "light", "heavy", and "others". Boilers on light classes were all fitted with ex-NZR "D" class boilers while the heavy class used ex-NZR boilers from "F" class locomotives. The "others" used boilers from other manufacturers, e.g. Dispatch, Scott, etc.

The 1908 model Davidson had two horizontal cylinders mounted on top of the chassis at the forward end of the loco. These drove back to a crankshaft mounted across the frame under the boiler. From there a reduction gear set transferred the power to another shaft mounted transversely almost under the crankshaft and from these two underslung shafts, chains were used to transmit the drive down to the nearest axle of the two trucks. A further chain then drove the outermost axle from its companion.

Again in 1908, a further lokey had slightly inclined cylinders mounted outside the frame below the smokebox driving to an underslung shaft coupled to two gear wheels on two countershafts, and from there, the patented chains drove the nearest axle on each truck.

This arrangement followed on the 1911 engine but the trucks were wider spread as difficulty had been experienced with lack of chain flexibility required for the trucks to negotiate sharp track curves. Truck centres were increased from 8ft-3in to 11ft-1in. Steam brakes were fitted.


The Patented Davidson Chain

Devised by George Davidson and patented, the chain was so made that all loadings were not carried on the pivot pins, but by shoulders machined into the links. In the original chain, sprocket wheels used were of the flat or single disc type with teeth at every link (i.e. on a pitch of 4in). It was necessary to adapt the chain for use on the bush lokeys so that misalignment could be accepted, so the sprocket wheels were a double-flanged type with the chain run between them and the teeth protruding from the bottom of the groove into every second link (i.e. on a pitch of 8in).

1912 0-4-4-0 Heavy

This locomotive has been fitted, by its owner, with a four-wheel tender for water and fuel. Note also that the wheels fitted are those for a wooden track although it appears that steel rails are used. The timber-lagged boiler became a fairly standard practise for owners in an endeavour to increase the efficiency.

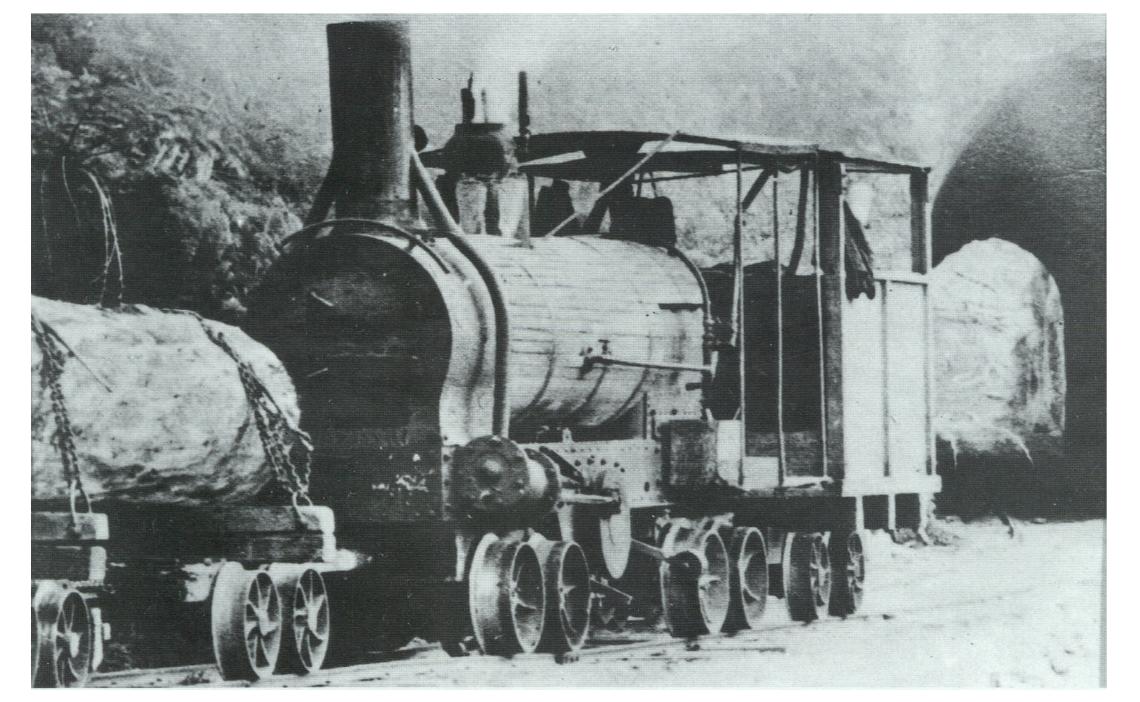

This is the Selwyn Timber Co. Davidson working the bush at Mangatapu. Note wood-rail type wheels used on steel rail,
(W.W. Stewart col.)


1916 0-4-4-4-0 Heavy 12-Wheeler

Davidson built two of this model and the locomotive was able to carry all of its fuel on board, therefore doing away with a separate tender. Because of the extra weight, and to keep the axle loading within prescribed limits, the loco was given extra four wheels under the rear of the frame. All twelve wheels were chain driven with the rear two trucks mounted on a swivelling beam. The water tank was placed between the frame members and wood fuel was carried on top of the tank and across the rear of the cab. The cab was also a first, drivers must have complained about the lack thereof on earlier Davidson locomotives.

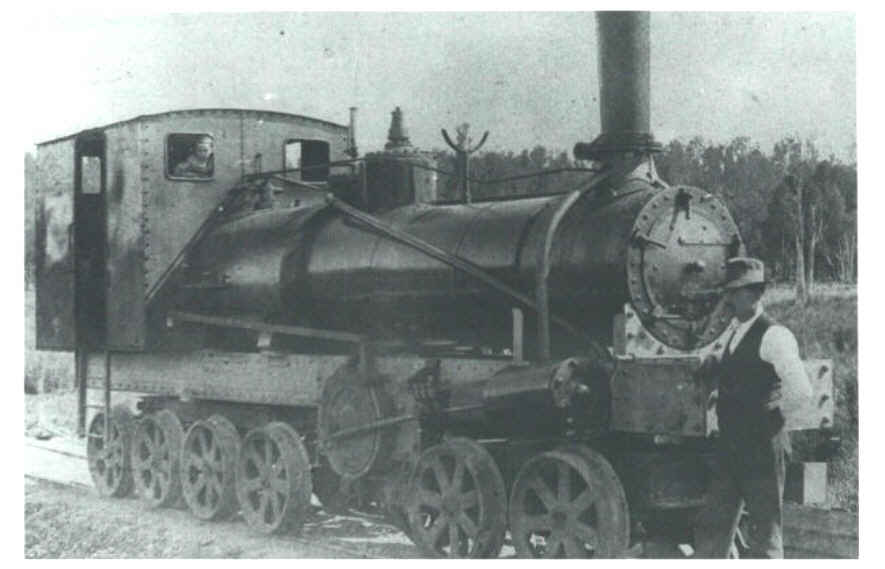

The loco is shown when brand new at Gamman Brothers show at Oropi. (MOTAT col.)

Dimensions: - Length 24ft-6½in (7480 mm), Wheelbase 16ft-4in (4978 mm), Truck wheelbase front 3ft-2in (965 mm), rear 2ft-10in (864 mm), Weight 17 tonnes, Boiler pressure 140 psi (965 kPa), Cylinders 9in x 18in (228 x 456 mm), Wheel diam. 30in (762 mm).




Additional Photos

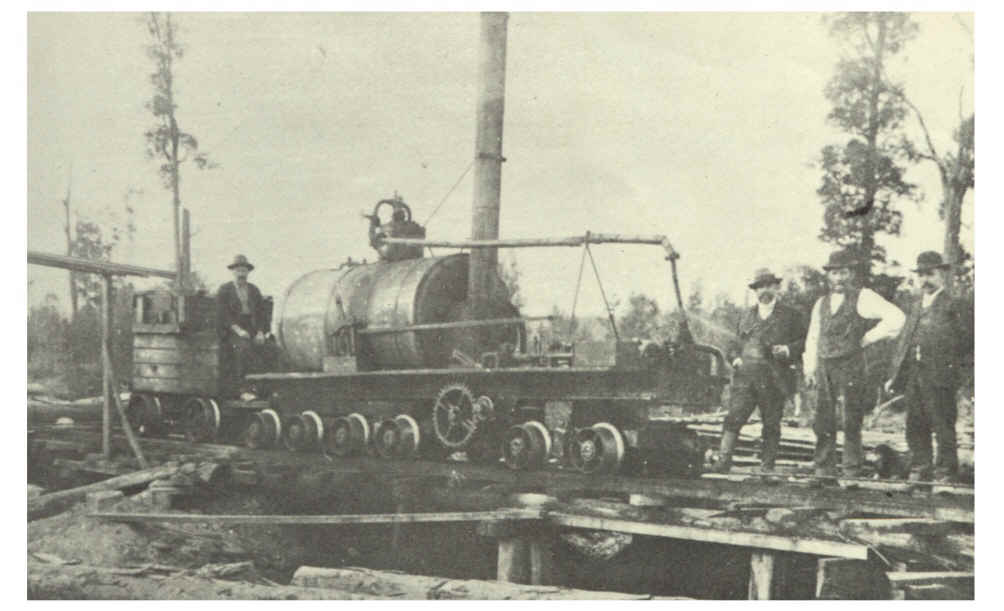

Photo 1 - An early Davidson, possibly a 1908 model at the Stratford & Blair operation at Hukarere. Note wooden rails. (Alan Bellamy col.)

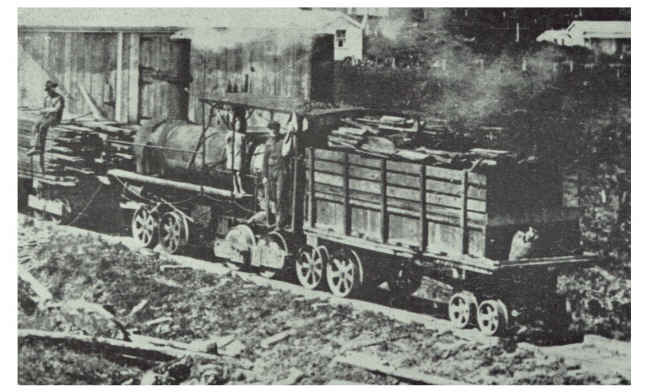

Photo 2 - 1911 Davidson. Note wooden lagged boiler, wide tread wheels and four-wheel tender for water and fuel. This may be the Selwyn Timber lokey.

Photo 3 - A 1908 Davidson at Snowy River. Note the slack chains.

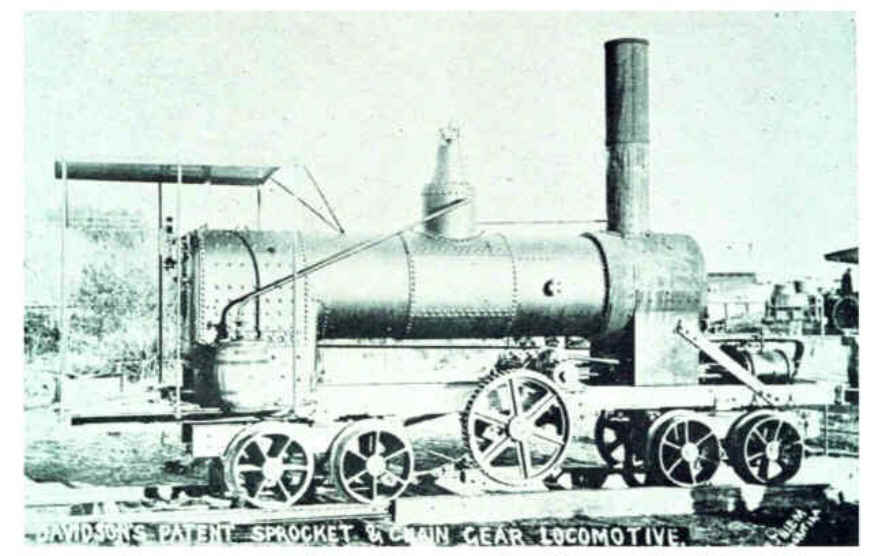

Photo 4 - A 1908 Davidson ready to leave the works. (B. Thiem)


The Survivor
