GP16 FRAME NUMBER VERIFICATION PAGE

Back in 1988 I typed up a roster including Serial numbers and frame numbers. Most likely the renumbering into the 1700 and 1800’s by CSX in 1987 prompted me to undertake this project. I was able to document the frame numbers of 76 of the 161 rebuilt units, and never found any discrepancies with frame numbers. So the list below is just simply a listing of frame numbers checked while I was out track side.

• CSX 1701 Frame # 5006-9 checked 6/03/1990 in Baldwin Fla.
• CSX 1702 Frame # 5006-1 checked 2/15/1990 Newberry Fla.
• CSX 1703 Frame # 5006-2 checked 11/18/1990 Baldwin Fla. Again 7/15/1990 Baldwin Fla.
• CSX 1705 Frame # 5006-8 checked 10/28/1990 Baldwin Fla. Checked again in Waycross Ga on 5/09/1992
• CSX 1706 Frame # 5125-3 checked left side 9/22/1990 Baldwin Fla.
• CSX 1709 Frame # 6464-3 checked 5/09/1992 Waycross Ga. Also noted under right front step weld of #914. Frame # of 6464-3 matches CRR 914
• CSX 1714 Frame # 5499-19 checked left side on 1/01/1991
• CSX 1715 Frame # 5499-23 checked 4/21/1990 Baldwin Fla. Checked again on 4/29/1990
• CSX 1717 Frame # 7526-8 checked 8/26/1990 at Jacksonville Fla., and again on 12/15/1990 left side frame Baldwin Fla.
• CSX 1719 Frame # 5499-15 checked 6/03/1990 in Baldwin Fla. Checked right side frame on 1/01/1991 at Baldwin Fla.
• CSX 1720 Frame # 7526-11 checked 4/14/1990 in Baldwin Fla. Checked both right and left sides on 4/18/1991 in Gainesville Fla.
• CSX 1721 Frame # 5626-9 checked left side frame on 9/30/1990 at Baldwin Fla.
• CSX 1723 Frame # 5499-5 checked left side frame on 9/11/1990 at Baldwin Fla.
• CSX 1724 Frame # 5424-? Checked 9/08/1990 at Baldwin Fla. Could not read dash number, but according to roster it should be dash 5. (5424-5)
• CSX 1726 Frame # 7526-? Checked both right and left side on 1/01/1991 but could not read the dash number. According to the roster it should be 7526-12.
• CSX 1729 Frame # 5499-9 checked 8/26/1990 Jacksonville Fla.
• CSX 1731 Frame # 5531-1 checked both right and left sides 8/03/1991 Newberry Fla.
• CSX 1733 Frame # 5499-13 checked 11/03/1990 left side frame Baldwin Fla.
• CSX 1734 Frame # 5499-4 checked lift side frame 3/31/1991 Newberry Fla.
• CSX 1735 Frame # 5499-21 checked left side frame 9/22/1990 in Baldwin Fla.
• CSX 1736 Frame # 5499-6 checked left side frame 1/20/1991 at Fernandina Beach Fla.
• CSX 1737 Frame # 5424-7 checked left side frame 3/24/1991 Newberry Fla.
• CSX 1743 Frame # 5424-4 checked 4/29/1990 in Baldwin Fla. Checked both right and left sides on 8/03/1991 in Newberry Fla.
• CSX 1744 Frame # 5499-7 checked 4/08/1990 Baldwin Fla. Checked again 6/09/1990 Baldwin Fla. Checked left side on 9/22/1990 at Baldwin Fla.
• CSX 1745 Frame #7533-? I could not read the – number. Checked 7/15/1990 Baldwin Fla. According to the roster it should be 7533-4 but I can’t confirm.
• CSX 1746 Frame # 5099-10 checked 9/22/1990 Jacksonville Fla.
• CSX 1747 Frame # 6446-7 checked 7/15/1990 at Baldwin Fla. Checked left side frame on 1/01/1991 at Baldwin Fla.
• CSX 1750 Frame # 5125-5 checked 11/03/1990 right side frame Baldwin Fla. There was also a second number in the right side frame. It was 4621, and later I would find out that this unit, SCL 4704, was for a short time numbered 4621. The move to the 4700’s was to keep units with 16-645BC engines and regular (non-alignment) couplers in the 4700’s while units in the 4600’s used the C-engine and alignment control couplers. Interesting as no other GP16 had its number engraved in the frame. I’m not sure why the 4621 was engraved in the frame.
I also checked CSX 1750’s frame number 5125-5 again on 5/09/1992 and 6/06/1992 in Waycross Ga.
• CSX 1751 Frame # 5125-9 checked right and left side 12/15/1990 Baldwin Fla.
• CSX 1753 Frame # 5040-2 checked 6/03/1990 in Baldwin Fla.
• CSX 1754 Frame # 5043-4 checked both right and left side frames on 10/14/1990 in Baldwin Fla.
• CSX 1755 Frame # 5187-1 checked both right and left side frame on 1/27/1991 in Newberry Fla.
• CSX 1756 Frame # 5050-12 checked right side frame 11/18/1990 Baldwin Fla.
• CSX 1763 Frame # 5095-4 checked right side frame 9/22/1990
• CSX 1767 Frame # 5142-5 checked right side frame 9/08/1990 in Baldwin Fla., rechecked right side on 12/30/1990 in Newberry Fla. Checked frame number again on 5/09/1992 Waycross Ga. Checked again 6/06/1992 Waycross Ga.
• CSX 1768 Frame # 5141-1 checked 10/28/1990 both right and left side frame. Jacksonville Fla.
• CSX 1769 Frame # 6193-11 checked left side frame 9/08/1990 Jacksonville Fla.
• CSX 1776 Frame # 5050-2 checked left side of frame 12/23/1990 at Newberry Fla. Checked again on 5/09/1992 Waycross Ga.
• CSX 1779 Frame # 6105-15 checked 5-07-1989 right front # was checked. Left rear was not completely visible. I could only see ?105-15. Checked in Starke Fla.  Checked right side again on 9/22/1990 Baldwin Fla. Checked again 11/03/1990 in Baldwin Fla.
• CSX 1781 Frame # 5101-2 checked 10/28/1990 both right and left side frame. Baldwin Fla. Rechecked right side frame on 1/20/1991 in Fernandina Beach Fla.
• CSX 1786 Frame # 5141-10 checked 7/21/1990 and 7/22/1990 both at Baldwin Fla.
• CSX 1790 Frame # 6446-6 checked right and left side frame on 2/11/1991 in Newberry Fla.
• CSX 1791 Frame # 5050-15 checked right side 12/30/1990 in Newberry Fla.
• CSX 1792 Frame # 5141-8 checked 7/15/1990 at Baldwin Fla. Left side frame checked 3/31/1991 Newberry Fla.
• CSX 1793 Frame # 5022-20 checked right side frame 12/09/1990 Baldwin Fla. Checked right side again on 1/20/1991 in Fernandina Beach Fla.
• CSX 1794 Frame # 5070-10 checked right side frame 10/14/1990 at Baldwin Fla.
• CSX 1797 Frame # 5142-2 checked left side frame on 9/08/1990
• CSX 1798 Frame # 6193-15 checked left side frame on 4/18/1991 in Gainesville Fla.
• CSX 1799 Frame # 6251-15 right side frame number checked 9/08/1990 Baldwin Fla.
• CSX 1802 Frame # 6096-7 checked right side frame 1/20/1991 in Fernandina Beach Fla. Checked both right and left side frame on 2/11/1991 at Newberry Fla.
• CSX 1806 Frame # 5050-10 right and left side checked 1/20/1991 Starke Fla.
• CSX 1807 Frame # 6170-3 checked 6/03/1990 in Baldwin Fla.

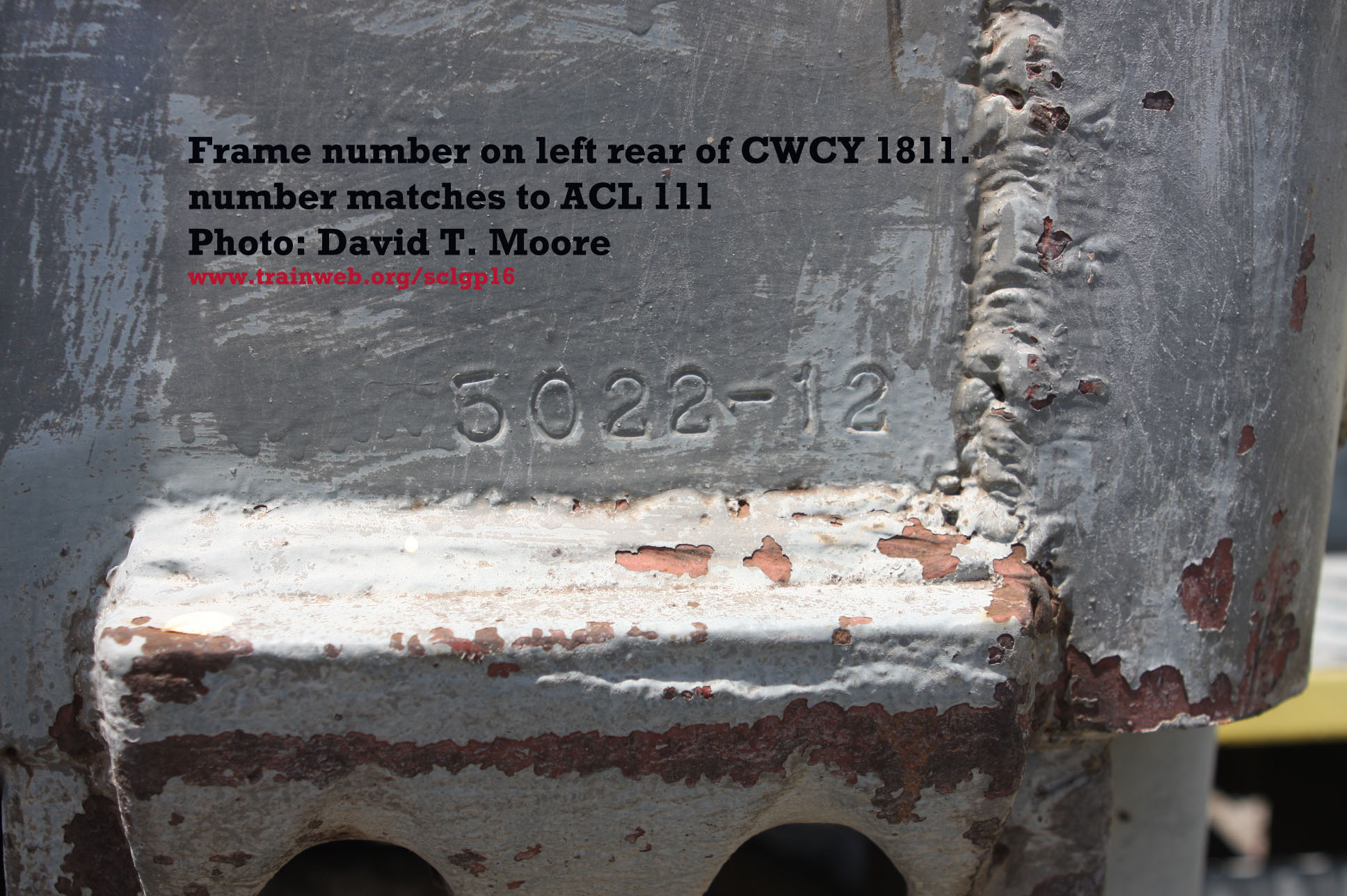

• CSX 1811 Frame # 5022-12 checked right and left side frame 6/03/2013 Hickory NC.
• CSX 1812 Frame # 6193-7 checked right side frame 5/09/1992 Waycross Ga.
• CSX 1813 Frame # 6446-13 checked 04/14/1990 Baldwin Fla, and on 11/18/1990 both right and left side frame Baldwin Fla.
• CSX 1817 Frame # 5033-6 checked 4/14/1990 in Baldwin Fla and again in Baldwin Fla on 4/21/1990. Checked left side on 12/09/1990 Baldwin Fla. Checked right side frame on 3/24/1991 Newberry Fla.
• CSX 1823 Frame # 6096-2 checked left rear side frame on 6/06/1992 in Waycross Ga.
Checked same side again on 9/27/1992 Waycross Ga.
• CSX 1824 Frame # 5087-4 checked 4/21/1990 in Baldwin Fla.
• CSX 1827 Frame # 5087-17 checked 11/03/1990 right side frame Baldwin Fla.
Frame # 5087-17 checked 11/04/1990 left side frame Baldwin Fla.
• CSX 1830 Frame # 5050-9 checked 1/01/1991 left side frame at Baldwin Fla.
• CSX 1831 Frame # 5099-15 checked 12/23/1990 in Newberry Fla.
• CSX 1833 Frame # 5022-16 checked left side frame 3/10/1991 Jacksonville Fla.
• CSX 1834 Frame # 5050-20 checked right side 1/27/1991 in Newberry Fla. Also noted there was no visible frame number on left side.
• CSX 1835 Frame # 5095-3 checked 7/15/1990 Baldwin Fla., and again at Baldwin Fla on 9/22/1990 (right side on 9/22/1990). Checked again 11/03/1990 left side frame Baldwin Fla.
• CSX 1836 Frame # 5099-6 checked 7/15/1990 Baldwin Fla
• CSX 1839 Frame # 5087-13 checked 6/30/1991 Newberry Fla.
• CSX 1841 Frame # 5100-4 checked 5/26/1990 at Baldwin Fla.
• CSX 1842 Frame # 6251-13 checked 6/04/2013 Bennettsville SC
• CSX 1843 Frame # 5050-28 checked 12/15/1990 right side frame Baldwin Fla.
• CSX 1850 Frame # 5128-5 checked both right and left side frame on 1/20/1991 at Fernandina Beach Fla.
• CSX 1853 Frame # 5010-3 checked 4/29/1990 Baldwin Fla. Checked 5010-3 again on 6/06/1992 in Waycross Ga. Noted that right side was unclear ??10-3, but left side was clear as 5010-3.
• CSX 1854 Frame # 5010-4 checked right side 5/09/1992 Waycross Ga. Checked again 6/06/1992. Noted checked the right side again.
• CSX 1856 Frame # 5336-3 checked right side 5/09/1992 Waycross Ga.
• CSX 1857 Frame # 5070-3 checked 3-29-1990 in Newberry Fla.
• CSX 1858 Frame # 5092-1 checked 4/21/1990 in Baldwin Fla. Checked both right and left side frames on 9/30/1990 in Baldwin Fla.
• CSX 1859 Frame # 5125-13 checked left side frame 3/10/1991 in Jacksonville Fla.

All frame numbers listed above were checked by David T. Moore
