Eagle Streamliners
MoPac Diesel Electric Power
The Route of the Eagles

Arthur B. Johnson Photo, T. Greuter Collection

Missouri Pacific President L. W. Baldwin wanted a symbol that represented "Speed and bright moderness" ... thus the Eagles were born.

With the dawn of the Eagles, a $1.25 million E-3 streamliner pair, the Missouri Pacific inaugurated its' dieselization by provided the latest in passenger service between St. Louis, Kansas City, Missouri and Omaha, Nebraska.

The style of the new Eagle Streamliners was the creation of Raymond Loewy (who went on the to work on such projects as NASA's Skylab, no less). The focal point on the shimmery blue exterior was the stylized spread eagle of brushed aluminum, with a crimson MP buzzsaw emblem proudly displayed, applied to the slant nose of the new streamliners and the tail of the observation cars. The look of these new units and their passenger cars were striking. It heralded the "official" beginning of dieslization on the Missouri Pacific.

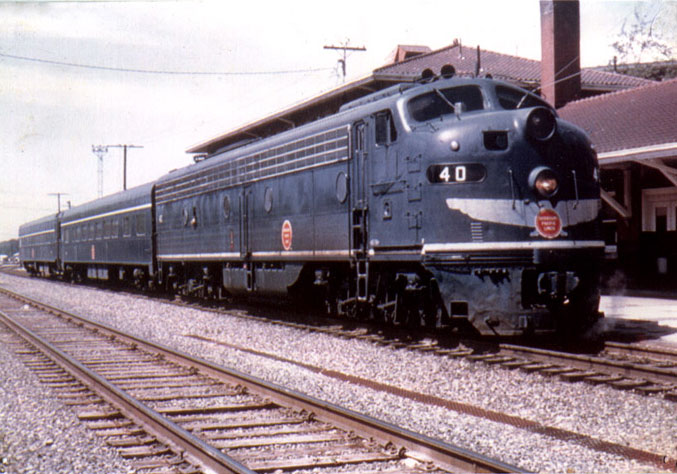

MP 40 - an E8 at the Poplar Bluff Depot in charge of northbound train 22, as shot by former MoPac mechanical supervisor Joe Falvey, circa 1967-'68. Greg Stout's book "Route of the Eagles" contains a photo of MP 4 at the the same spot. - Joe Falvey Photo/ Craig Meador Collection

Streamliners were some of the most fondly remembered equipment owned by railroads. The Missouri Pacific operated a beautiful roster of blue and mist gray streamliners, beginning with the first Raymond Loewy designed Eagle. The six-car trainset lead by the E3 locomotives seemed to glide by on the inagural trip witnessed by admirers everywhere, and thus began the streamlined era on the MoPac system.

Such names as the Colorado Eagle, the Texas Eagle, the Missouri River Eagle, the Aztec Eagle, the Valley Eagle, the Delta Eagle, the Louisiana Eagle, and even a "Pacific Eagle" conjure up vivid memories.

With increased air travel and the growing highway system, economics would eventually force passenger service off the rails in America - and the MoPac was no different than other roads. By the late 1960's the MoPac's Eagle fleet eventually vanished into oblivion. The vibrant memories from the Route of the Eagles is all that we have left.

1939 marked the introduction of the first streamliners on the MP system. These included EMC/EMD-built E3, AA6, and E6 diesels, each painted in an all-new elaborate blue/gray design with yellow trim and a MPL stainless steel spread-eagle on the nose. These were part of the new "Route of the Eagles" passenger service, which in the foloowing years spread as far west as the Grand Canyon and California.

The Missouri River Eagle was inaugurated March 10, 1940 for the St. Louis-Kansas City-Omaha passenger service. Two EMD E-3's, #7000 and 7001 were the units on the River Eagle's first run.

1940 was wartime - the streamlined EMD FT was delivered to MoPac in a slightly less elaborate paint scheme from her passenger-assigned sisters, and invaded the steam ranks as it went into freight service to help the war effort.

MP E-3 #7000 and #7001 - March 1940. One of the first "Eagles" on its run to Omaha, taken near Pomeroy, Kansas. The photographer worked for the MoPac for 43 years in the Kansas City Office. - Fred Schneikart Photo/ Paul Schneikart Collection

MP E-3 #7001 - at Jefferson City, Missouri on June 6, 1948. The sleek E-3 is seen here with the Colorado Eagle, a later run that was an outgrowth from its original assignment to Missouri River Eagle some eight years earlier. Notice the dome of the Missouri capitol building in the background. - Arthur B. Johnson Photo, T. Greuter Collection

1947-51 saw the deliveries of the the Alco/GE PA-1, PA-2 and PA-3 (its been argued that the PA-3's were in fact modified PA-2's).

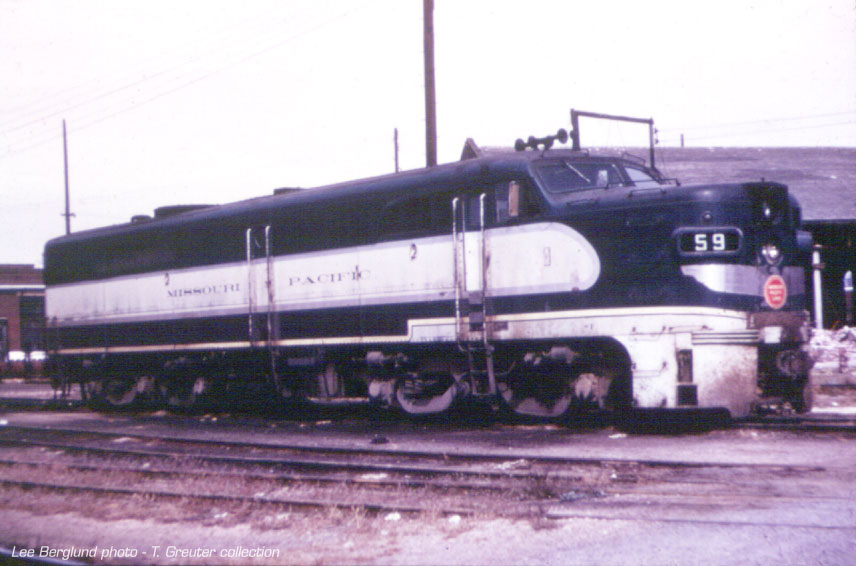

MP 59 - an Alco PA-2 (built in June 1951 originally as #8016) with its brushed metal nose Eagle glimmering pauses in St. Louis back in September, 1962. It will be retired in another three years. - Lee Berglund photo, T. Greuter collection ·

MP 8009 - an ALCo PA-2 at Raymondville, Texas on August 7, 1952. Built on 5/50, the #8009 would later be renumbered as MP 52 before being retired in 1964-65 to Chaneysson Electric. - Arthur B. Johnson Photo, T. Greuter Collection

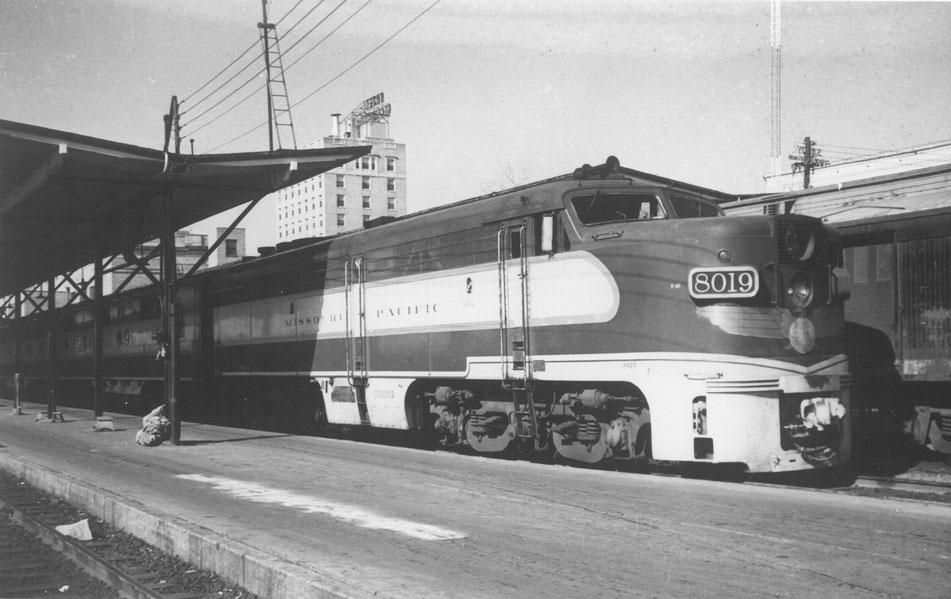

MP 8019 - A PA-3 at Texarkana, Texas on March 4, 1956. The #8019, built 5/52, will go on to be renumbered as MP 62, retiring in 5/64 to Chandeysson Electric. - Arthur B. Johnson Photo/T. Greuter Collection

Diesel Details
From the first Eagle E-3 Streamliner in 1949 until the early 1960's, you could see PA's, F7's and FA's, RS3's and Geeps in MP's classic blue and gray paint scheme. Meanwhile, the diesel switchers were painted black with brushed aluminum lettering - just like the steam switchers they'd replaced. They wore this scheme from their introduction in 1939 until 1961, when all switchers, freight and passenger units began the conversion to the solid Jenk's Blue.

Diesel Details
On ALCo PA's the design of the exhaust stack was affected by the addition of turbochargers. A similar detail difference applies to the ALCo RS units.

The DR-4-4-1500's a.k.a. 'Babyfaces' along with the DRS-4-4-1500's all came with pneumatic MU control, which prooved to be a slight problem, as EMD & ALCo did not use this method, making it impossible for the different units to MU together. Due to this situation, all the AS-16s had the preferred "EMD" standard MU controls installed in later years.

These tempermental machines were restricted to the Arkansas division in the mid-1950's, replacing the last steam engines on the MoPac. They were prone to breaking-down and were universally disliked by crews and the mechanical department alike.

1947-51 also saw the deliveries of the EMD E7 and E8.

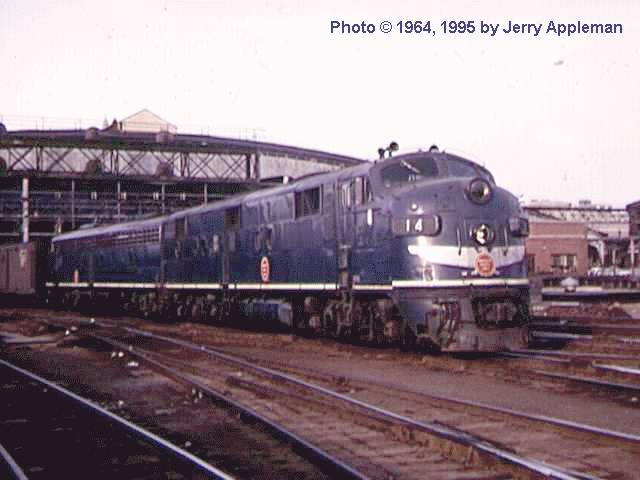

MP 14 - E7A on passenger at St. Louis, Missouri Union Station in March, 1964. - photo © 1964, 1995 by Jerry Appleman-Jerry's Railroad PhotoAlbum.

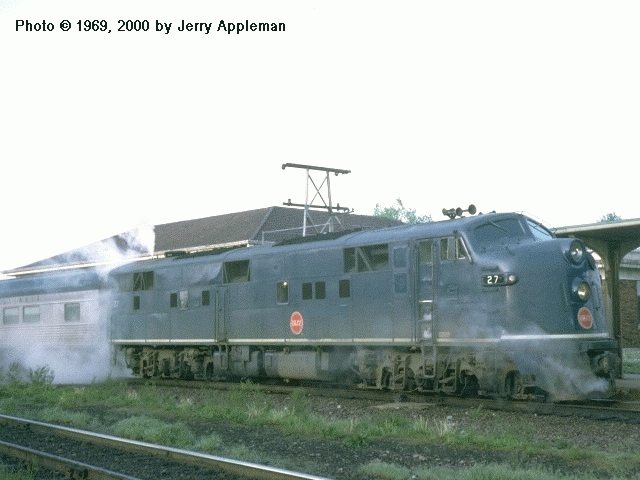

C&EI 27 - E7A on train #4, The Danville Flier at Danville, Illinois in May 11, 1969. - photo © 1969, 2000 by Jerry Appleman.

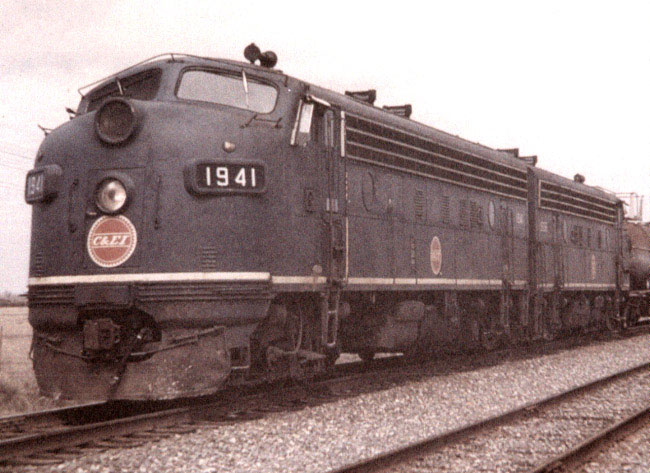

C&EI E-unit #1941 - Photographer unknown / Jay Glenewinkel purchased photo collection.

T&P 2005 - St. Louis, December 1961 - Gary Morris Photo or Collection

Built in April 1948 and September 1948, MoPac purchased eight BL2's, #4104-4111. All were retired in 1962 and traded in for GP18's #534-549. These units never wore Jenks blue.

The BL2 was EMD's first attempt at the still new diesel roadswitcher concept, it's hybrid appearance (it was a precursor to the yet- to-come GP7) of a covered wagon with a nose walkway could be considered as something of a "streamlined roadswitcher."

MP 801 - F7A in an ABBA arrangement. The units are in the Jenk's Blue paint scheme. From an EMD builder's card produced to compare and promote diesel power. - EMD Photo

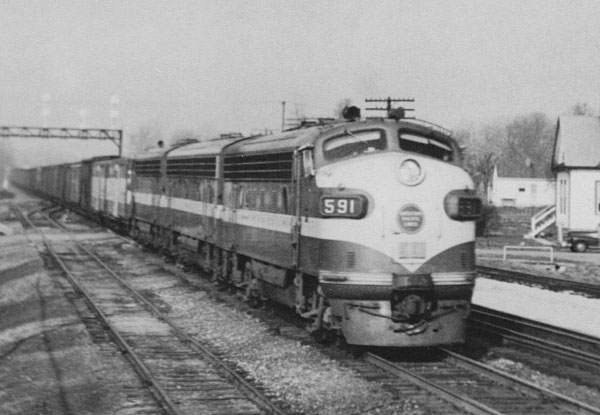

MP F7 #591 - was built in October 1949 (all F7s originally numbered from 577-626). It was later renumbered to MP 810 as part of the 1962 renumbering system. The unit was retired in March 1970, and traded in to EMD for the new SD40s. - Photographer and Location unknown /Jay Glenewinkel Purchased Photo Collection

I-GN 604 - a 2-unit EMD F7A freight at San Antonio, Texas on September 2, 1952. The 604 was built on 9/49 and would later be renumbered as MP 823 before being retired in 1971 as a trade-in to EMD. Also, just for interest, the #604 photo is an extremely "rare" example of an F7 that is shown with the anticlimber painted blue. Mopac F3s and F7s normally had the anticlimber painted Eagle Gray (prior to the 1961 Jenks blue scheme, of course). (thanks to Ed Hawkins) - Arthur B. Johnson Photo/ T. Greuter Collection

T&P F7 #864 - was built in November 1949 as Texas & Pacific #1514. It was later renumbered to T&P #864. It was renumbered again to its final number as T&P #1864. It was retired in 1974 and traded in on the SD40-2 purchase for the C&EI. - Photographer and Location unknown/Jay Glenewinkel Collection

In 1947-51, large numbers of the EMD F3, F5, F7 and BL2, and the Alco/GE FA-1, FA-2, and FPA-2 being built for MP subsidiaries Texas & Pacific, International Great Northern, Kansas Okalhoma & Gulf, St. Louis, Brownsville & Mexico, as well as MP.

T&P 884 - an EMD-built F7A is the lead unit seen at a small depot in the laters years of it's employment in the early 1970's. Now coated in unglamorous Jenks Blue, and with the take-over of passenger service by Amtrak, she's saddled with the task of hauling mixed freight. It'll retire in August 1973. The only distinction the 1950-built unit has from it's MP sisters is a small subletting beside the buzzsaw decal. Grapeland, Texas, 7/70 - © Brian Paul Ehni Photo

Diesel Details
F7's in Eagle paint had the air intake grills on the side left unpainted bare stainless steel.

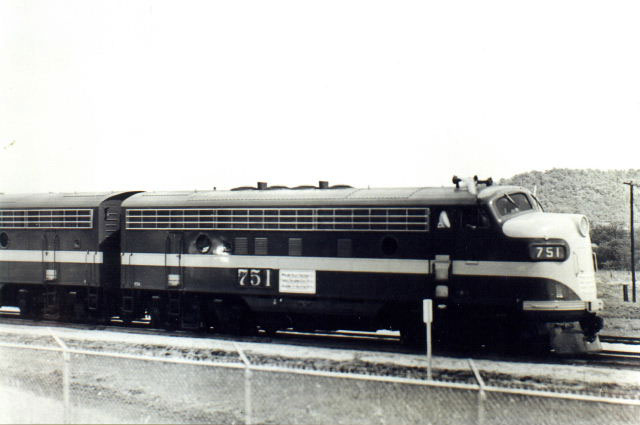

KO&G F7A 751 - and F7B at Henryetta, OK, date unknown. (shows 'as delivered' herald with Midland Valley on top) - photographer unknown, Robert F. Read Collection / submitted by Gary Herron

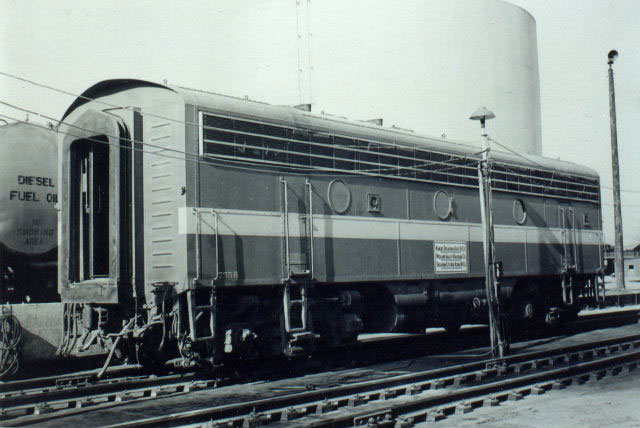

KO&G F7B 755B - at Muskogee, OK, unknown date (original paint with revised herald with KO&G on top, which occurred after KO&G became the dominant revenue road. See Stagner's book for more info) - photographer unknown, Robert F. Read Collection / submitted by Gary Herron

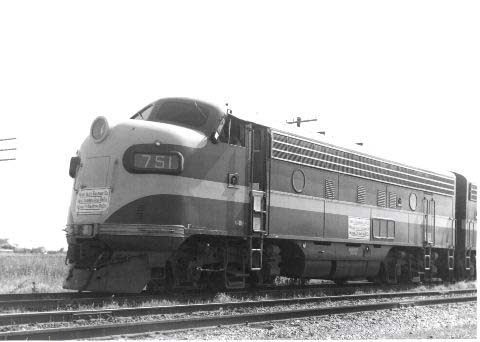

MV F7 #751 - No information available (obtained from Charlie Duckworth) - photographer/date unknown /Gary Herron Collection

February 1948 - the Baldwin DS-4-4-1000 and DRS-4-4-1500 were built for MP.

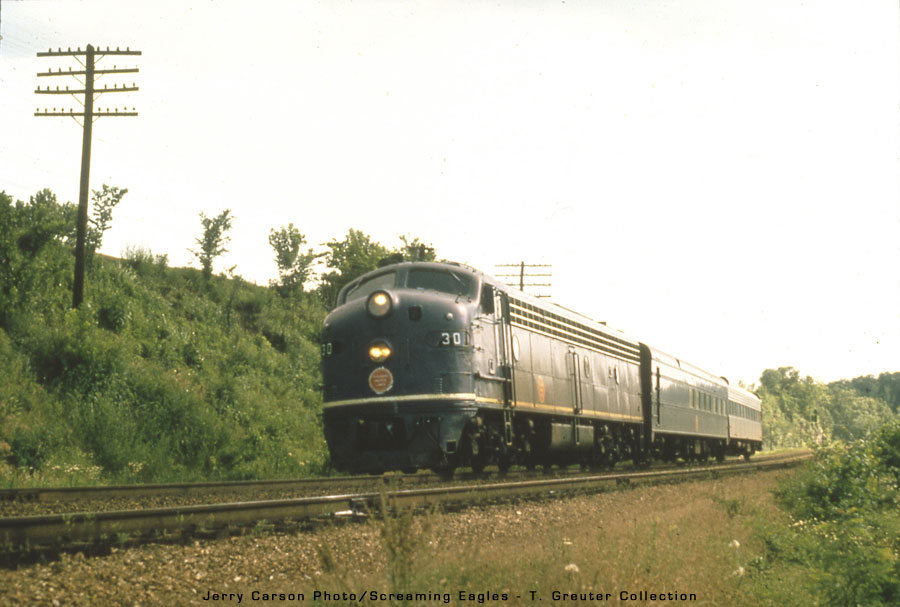

MP 30 - E8A, running through the St. Louis area with a 2-car consist. - Jerry Carson Photo/T. Greuter Collection ·

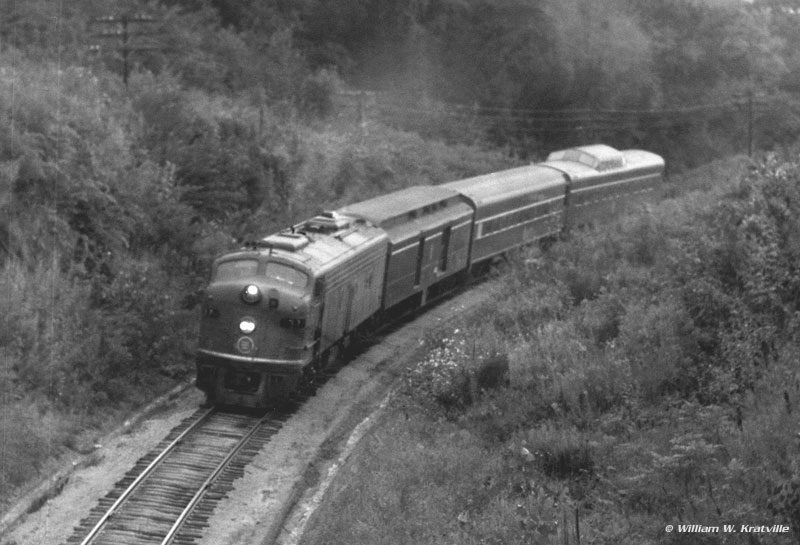

MP 31 - a lone E8A huffs and puffs with a three-car consist of baggage, standard passenger and observation cars, apparently somewhere in the wooded hills of the Missouri River valley of Nebraska. - photo © William W. Kratville/T. Greuter Collection

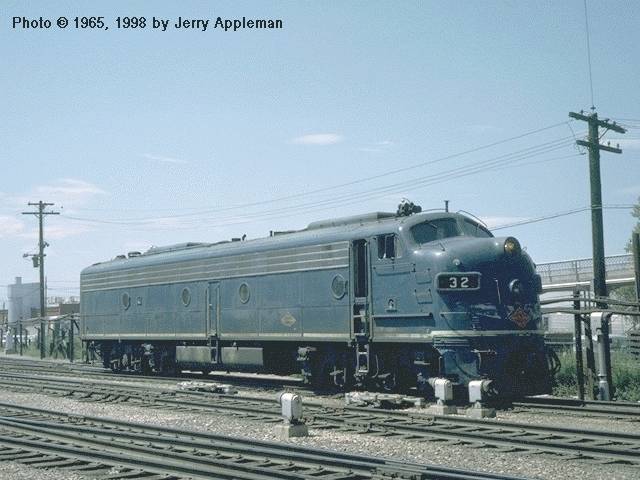

T&P 32 - an E8A powered light at Denver, Colorado's Union Station in August, 1965. - photo © 1965, 1998 by Jerry Appleman.

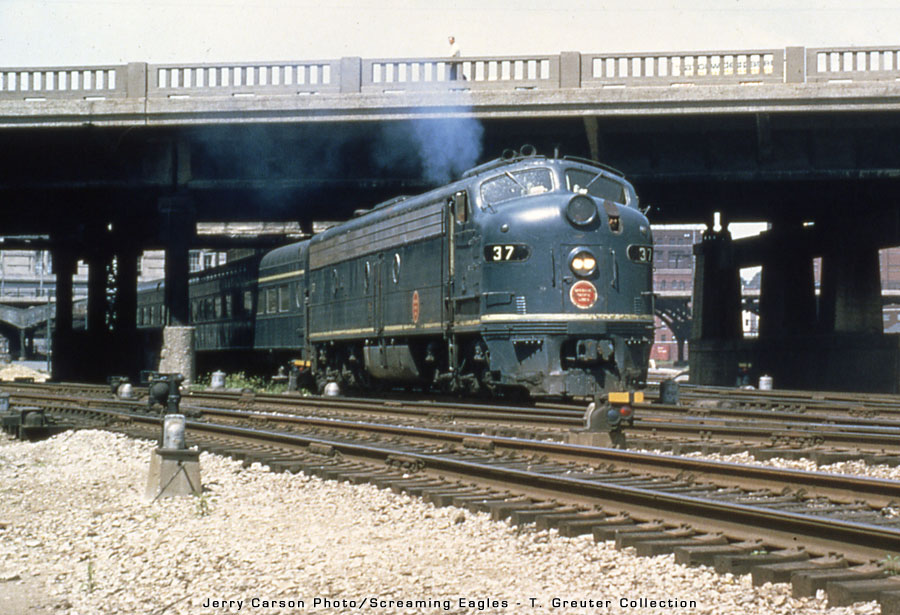

MP 37 - E8A, in St. Louis, notice the portholes on the unit's sides. - Jerry Carson Photo/T. Greuter Collection ·

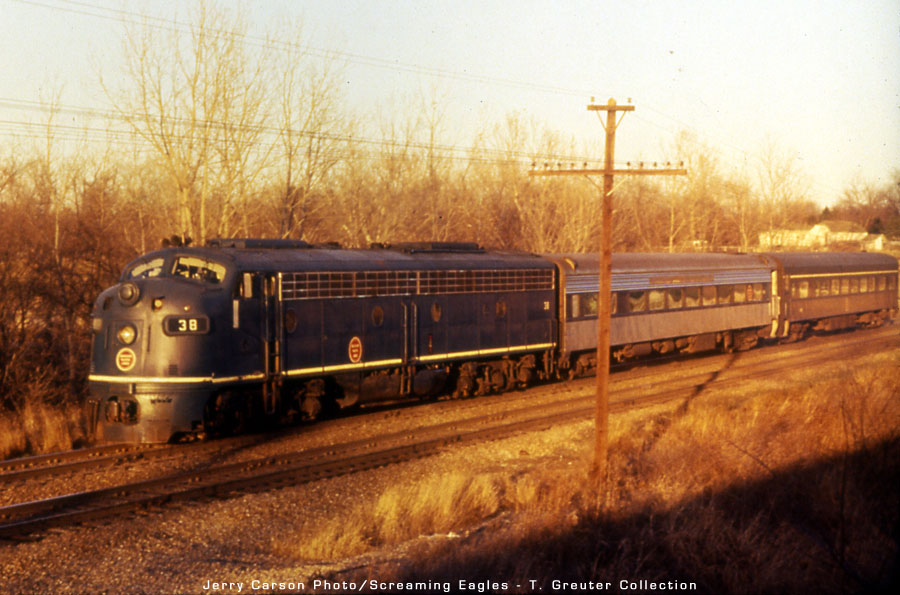

MP 38 - E8A, running through the St. Louis area. - Jerry Carson Photo/T. Greuter Collection ·

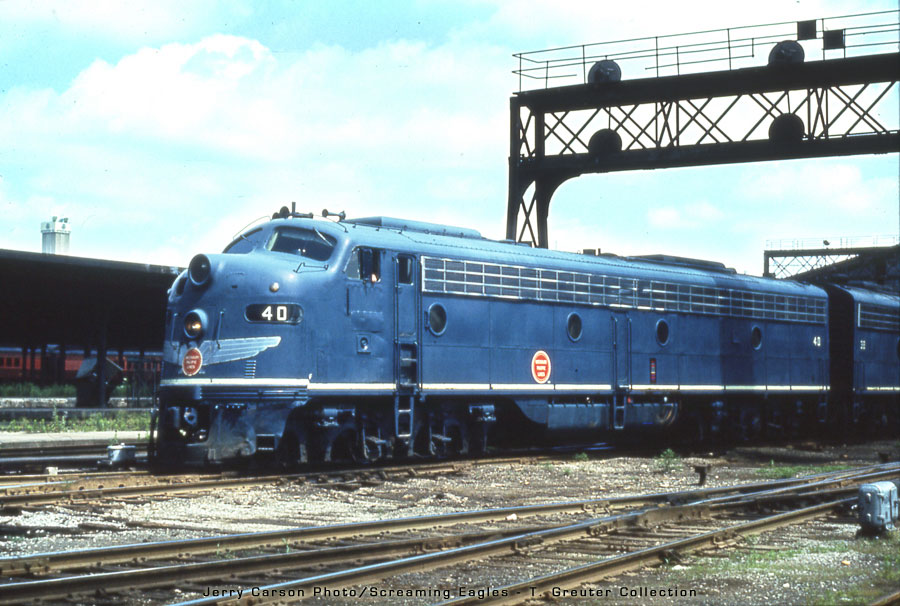

MP 40 - an E8A, though a darkly lit shot, displays the classic nose eagle reserved for the streamliners in MoPac's passenger service. - Jerry Carson Photo/T. Greuter Collection ·

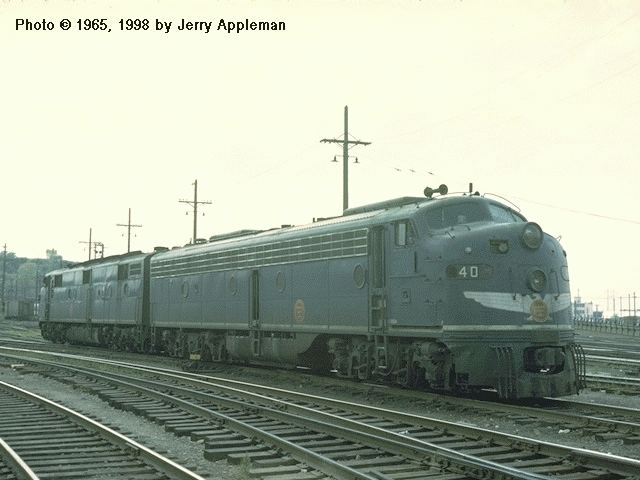

MP 40 - an E8A powered light at Kansas City, Missouri in August, 1965. - photo © 1965, 1998 by Jerry Appleman.

MP 41 - E8A on train #16, the Missouri River Eagle at Warrensburg, Missouri, February 14, 1970. - photo © 1970, 2001 by Jerry Appleman.

By the early 1970's, passenger service disappeared across the nation to be taken-over by Amtrak. MoPac's aging F7's, F8's and their B-units found a new if less glamorous life as they began filling-out freight-hauling rosters in their final days.
